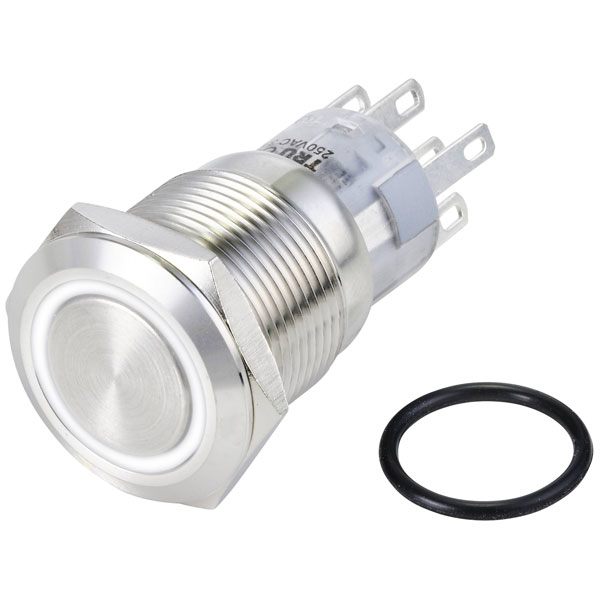

TruComponents 782146 Pushbutton ,Panel Mount,On/(On),DPDT,Solder,IP65

The TruComponents 78-2146 pushbutton is a tamper-proof, momentary, panel mount pushbutton DPDT switch, featuring a white illumination and an IP65 rating for protection against dust and water. It has a voltage rating of 250V AC circuit with a current rating of 3A, using a momentary 2 x On/(On) switch action. Ideal for industrial and outdoor environments requiring reliable control or signalling solutions.

Type	Pushbutton
Contact Configuration	2 x On/(On)
Switch Function	Momentary
Current Rating	3A
Mounting	Panel
Illumination	White
Panel Cutout Dimensions	20.2 dia
Board thickness (max.)	10mm
Bulb Type	LED (monochrome)
Casing/button colour	Stainless steel
Colour	White
Connection	Soldering
Contact Material	Silver alloy
Contact Resistance	≤ 50 mΩ
Dielectric Strength	1500 VAC
Electrical lifespan	50000
Insulation Resistance	≥100 MΩ
IP Rating	IP65
Lighting Type	Circular lighting
Max. temperature	+55°C
Min. temperature	-25°C
Misc Attribute	LAS1-AGQ-22E/W/24V/S
Plastic free packaging	Plastic-free packaging
Recess depth	38.2mm
Recess Diameter	20mm
Switching Voltage	250V AC
