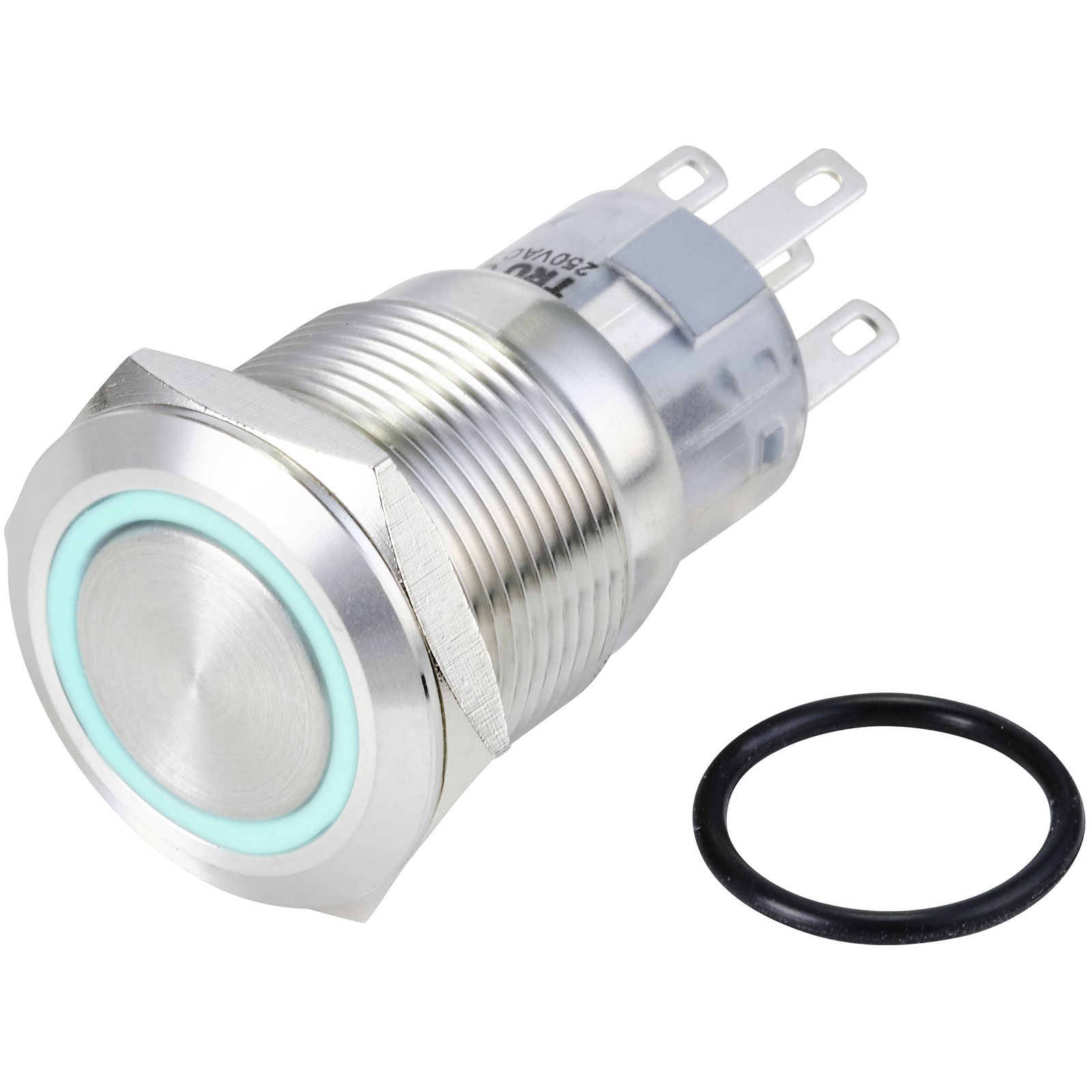

TruComponents 782141 Pushbutton ,Panel Mount,On/(On),SPDT,Solder,IP65

The TruComponents 78-2141 pushbutton is a tamper-proof, latching, panel mount pushbutton switch, featuring an IP65 rating for dust and water resistance. It supports a voltage of 250 V AC and a current rating of 3 A with a single-pole, double-throw (SPDT) configuration. Ideal for industrial and commercial applications, this pushbutton is designed with blue illumination for enhanced visibility.

Type	Pushbutton
Contact Configuration	1 x On/On
Switch Function	latch
Current Rating	3A
Mounting	Panel
Voltage Rating	250v
Illumination	Blue
Panel Cutout Dimensions	20.2 dia
Board thickness (max.)	10mm
Bulb Type	LED (monochrome)
Casing/button Colour	Stainless steel
Colour	Blue
Connection	Soldering
Contact Material	Silver alloy
Dielectric Strength	1500 VAC
Electrical lifespan	50000
Insulation Resistance	≥100 MΩ
IP Rating	IP65
Lighting Type	Circular lighting
Maximum Temperature	+55°C
Min. temperature	-25°C
Misc Attribute	LAS1-AGQ-11ZE/B/24V/S
Plastic free packaging	Plastic-free packaging
Recess depth	38.2mm
Recess Diameter	20mm
Switching Voltage	250V AC
