TruComponents 782132 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65

TruComponents
Order Code:

78-2132

Brand: TruComponents MPN: 782132 EAN-13: 4064161206097
Qty Unit Price (Ex VAT)
1+ £7.30
5+ £7.13
10+ £6.96
25+ £6.80
50+ £6.65
100+ £6.51
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
30 in stock, despatched in 4 working days

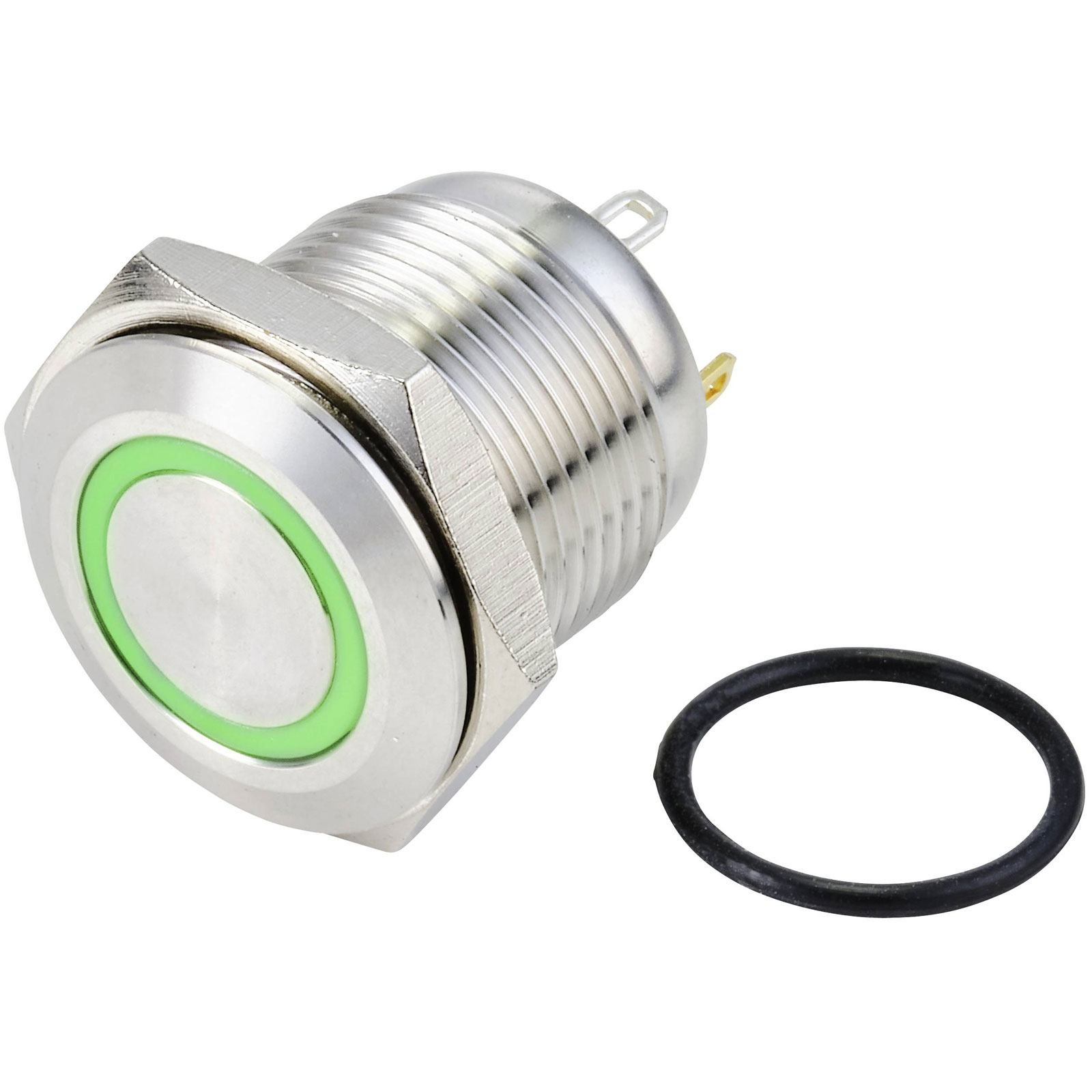

The TruComponents 78-2132 tamper-proof pushbutton is a panel mount switch with an off/(on) momentary action, designed for durability with IP65 protection. It operates at 48V DC with a maximum current of 2A, featuring a green illumination. This pushbutton is suitable for industrial control panels and equipment requiring reliable and robust input controls.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function momentary
Current Rating 2A
Board thickness (max.) 6mm
Bulb Type LED (monochrome)
Casing/button colour Stainless steel
Colour Green
Connection Soldering
Contact Material Silver alloy
Dielectric Strength 1500 VAC
Electrical lifespan 50000
Insulation Resistance ≥ 100MΩ
IP Rating IP65
Lighting type Circular lighting
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute GQ16F-10E/J/G/24V/S
Plastic free packaging Plastic-free packaging
Recess depth 20mm
Recess diameter 17mm
Switching Voltage 48V DC
