TruComponents 782131 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65

TruComponents
Order Code:

78-2131

Brand: TruComponents MPN: 782131 EAN-13: 4064161206080
Qty Unit Price (Ex VAT)
1+ £7.54
5+ £7.36
10+ £7.19
25+ £7.02
50+ £6.87
100+ £6.72
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
52 in stock, despatched in 4 working days

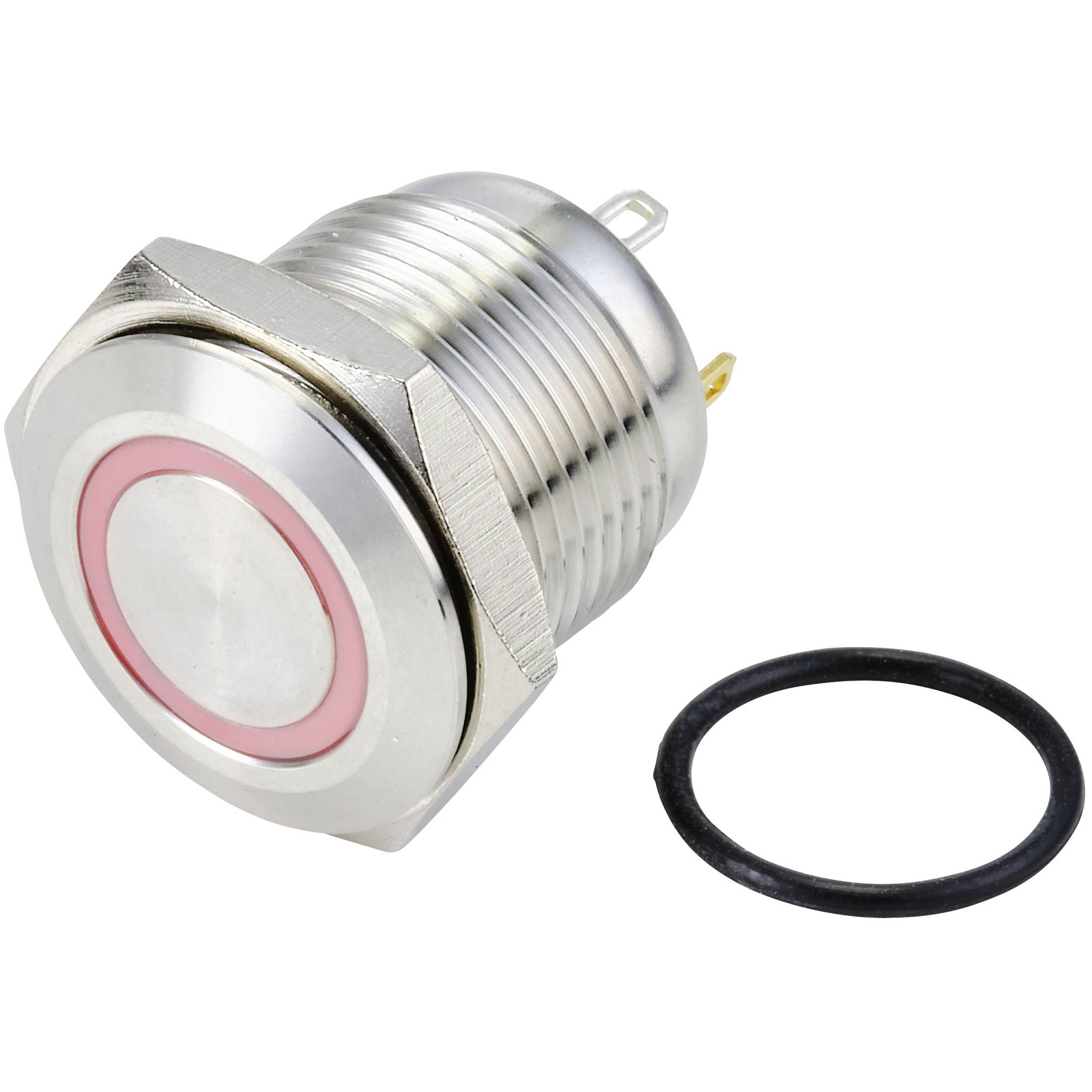

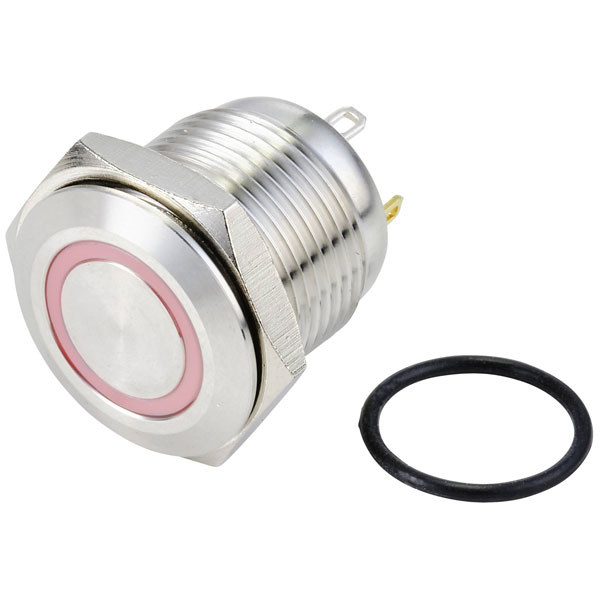

The TruComponents 78-2131 pushbutton is a tamper-proof panel mount switch with a single pole, single throw (SPST) configuration, with Off/(On) momentary action. It operates at a voltage rating of 48 V DC with a current rating of 2 A, featuring a red illumination and IP65 protection against dust and water. Suitable for industrial applications, it is ideal for control panels and machinery where reliable operation and security are required.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function momentary
Current Rating 2A
Board thickness (max.) 6mm
Bulb Type LED (monochrome)
Casing/button colour Stainless steel
Colour Red
Connection Soldering
Contact Material Silver alloy
Dielectric Strength 1500 VAC
Electrical lifespan 50000
Insulation Resistance ≥ 100MΩ
IP Rating IP65
Lighting type Circular lighting
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute GQ16F-10E/J/R/24V/S
Plastic free packaging Plastic-free packaging
Recess depth 20mm
Recess diameter 17mm
Switching Voltage 48V DC
