TruComponents 781996 Pushbutton ,Panel Mount,Off/(On),SPST-NC,Solder

TruComponents
Order Code:

78-1996

Brand: TruComponents MPN: 781996 EAN-13: 4064161300078
Qty Unit Price (Ex VAT)
3+ £1.49
5+ £1.45
10+ £1.42
25+ £1.39
50+ £1.36
100+ £1.33
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
641 in stock, despatched in 4 working days

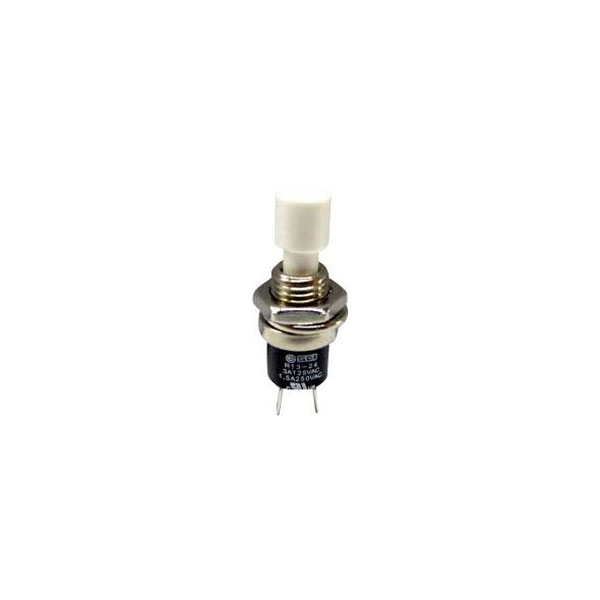

The TruComponents 78-1996 pushbutton is a miniature, white momentary switch designed for panel mounting. It operates with a normally-closed configuration, supporting a voltage of up to 250 V AC and a current of 1.5 A. Typical applications include use in low-power circuit controls and on devices requiring a momentary switch function.
Type Pushbutton
Contact Configuration 1 x On/(Off)
Switch Function 1 breaker
Current Rating 1.5A
Board thickness (max.) 4mm
Button diameter 6mm
Casing/button colour White
Connection Solder tag
Contact Resistance max. 50mΩ
Height 5.6mm
Insulation Resistance min 100 MΩ (500 V/DC)
Lighting type None
Misc Attribute TC-R13-24B1-02 WT
Recess diameter 7.2mm
Switch/button features Protruding
Switching Voltage 250V AC
