TruComponents 781932 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder

TruComponents
Order Code:

78-1932

Brand: TruComponents MPN: 781932 EAN-13: 4064161299129
Qty Unit Price (Ex VAT)
5+ £1.09
10+ £1.07
25+ £1.04
50+ £1.02
100+ £0.997
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
266 in stock, despatched in 4 working days

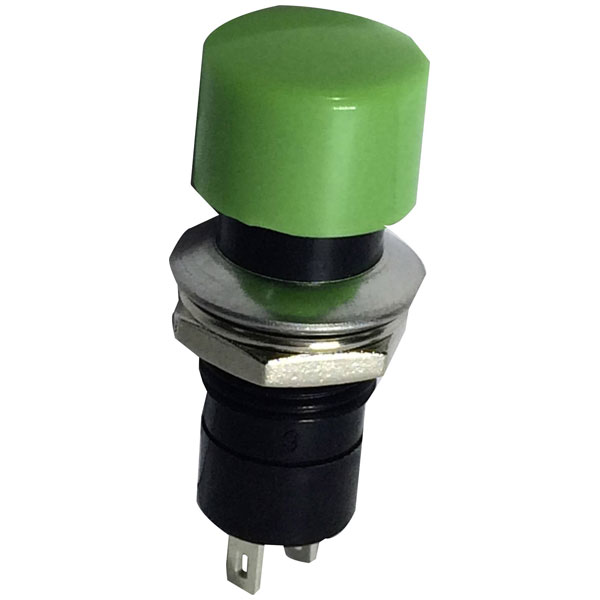

The TruComponents 78-1932 Pushbutton is a reliable and durable momentary switch, ideal for various electronic applications. Rated at 250V AC and 1.5A, this pushbutton features a protruding green button cap, and solder tags for easy installation. Its robust phenol construction ensures long-lasting performance, making it a perfect choice for control panels.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function 1 maker
Current Rating 1.5A
Board thickness (max.) 4mm
Casing/button colour Green
Connection Solder tag
Contact Resistance max. 50mΩ
Dielectric Strength 1000 V/AC/60 s
Insulation Resistance (500 V/DC) min. 100MΩ
Lighting type None
Material Phenol
Misc Attribute TC-R13-40A-05GB
Recess diameter 12.2mm
Switch/button features Protruding
Switching Voltage 250V AC
