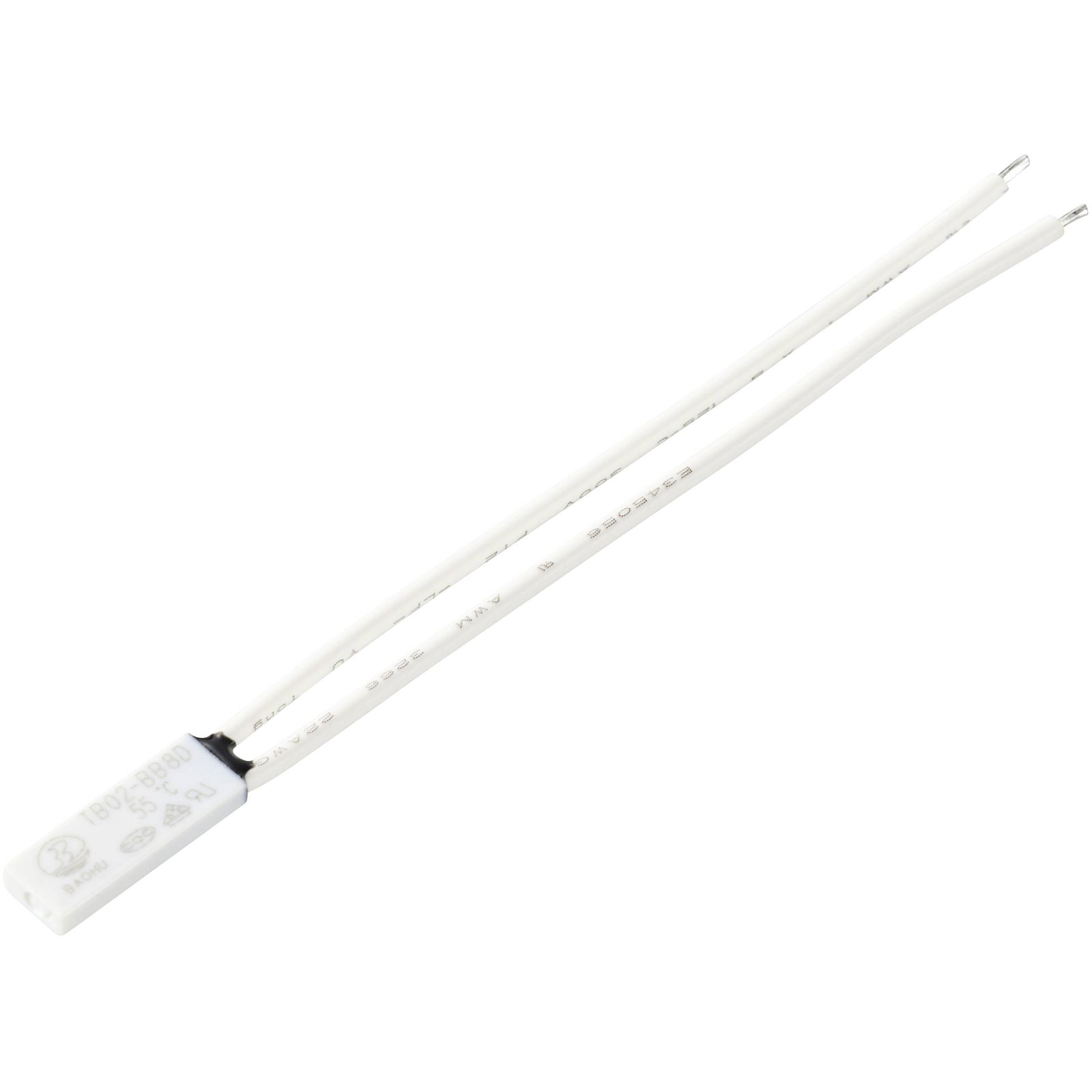

TruComponents 656555 Temperature monitor 0-+160 °C 1 breaker

The temperature monitor interrupts the switch contact is reached, the switch-off temperature and completes the switching contact is independently, after the temperature on the switch on temperature has fallen. For example, for applications in the heating and air-conditioning systems, motor protection, etc.

Type	Temperature Monitor
Connection Type	Cable, open end
Accuracy	6°C
Cable Length	7.00cm
Contact Type	1 breaker
Cutoff (temperature)	+55°C
Dim	(L x W x H) 15 x 5.4 x 2.4 mm
Enclosure material	Polyethylene terephthalate
Height	2.4mm
Length	15mm
Misc Attribute 1	TB02-BB8D-55
Misc Attribute 2	Radial lead
Operating Voltage	12, 115 - 24, 250 V DC, V AC
Switching current (max.)	4A
Switch-on temperature	+42°C
Temperature reading range	0 up to +160°C
Temperature reading range (max.)	+160°C
Temperature reading range (min.)	0°C
Width	5.4mm
