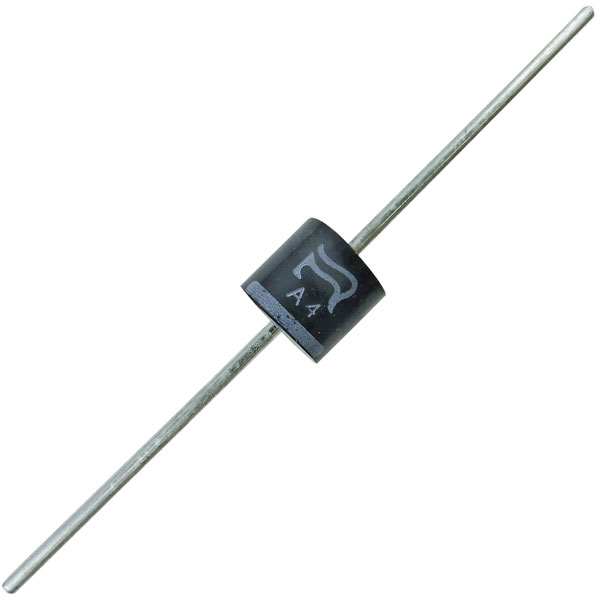

TRU COMPONENTS 1582070 Super-fast Si rectifier 200V 12A P600 HF & power diodes

TruComponents 1582070 is a super-fast silicon rectifier designed for applications requiring high efficiency and reliability, with a reverse voltage rating of 200 V and a current capacity of 12 A. This product features a P600 package and is suited for high-frequency power conversion tasks where rapid switching speeds are essential. It plays a crucial role in DC power supplies, inverters, and power factor correction circuits, offering swift rectification with minimal reverse recovery time. The diode's robust construction ensures consistent performance under demanding conditions, making it an optimal choice for engineering projects focused on energy management and circuitry efficiency. The 1582070 variant provides a modern solution for industries that prioritise high-speed and high-efficiency power diode requirements.

Type	TC-F1200D
Enclosure	P600
Forward current I(F)	12A
Forward voltage reference	12A
Forward Voltage U(F)	0.91V
Maximum Operating Temperature	+150°C
Mounting Type	Through-hole
Operating temperature (min.)	-50°C
Product Type	Super-fast Si rectifier
Reverse leakage Current I(r)	40µA
Reverse leakage current I(r) reference	200V
Reverse reCovery Time T(rr)	200ns
Reverse Voltage U(R)	200V
