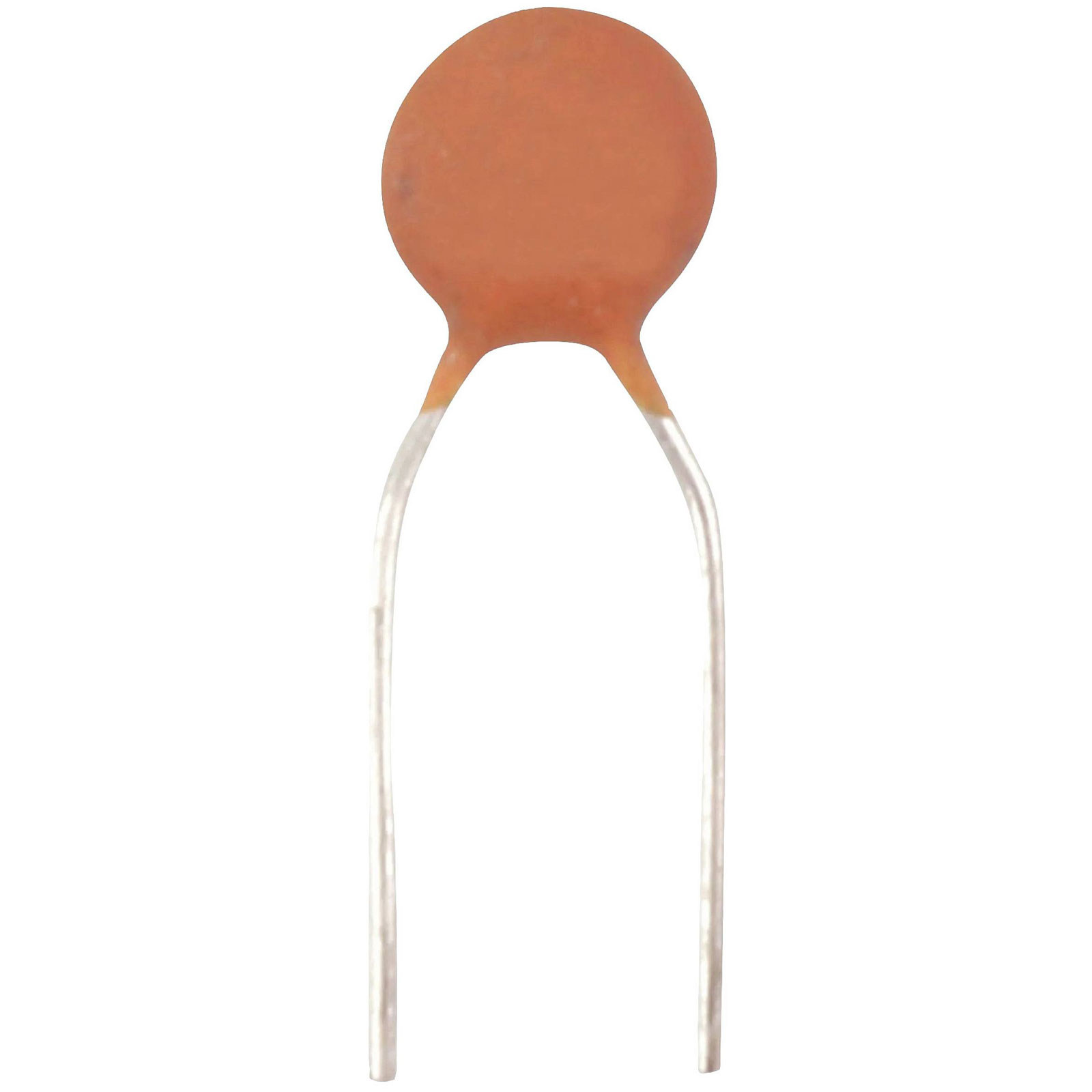

TRU COMPONENTS 1556957 Ceramic disc capacitor Radial lead 8.2 pF 100V DC 5%

TRU COMPONENTS 1556957 is a ceramic disc capacitor with radial leads, providing a capacitance of 8.2 pF and a rated voltage of 100 V DC with a tolerance of 5%. The capacitor has dimensions of 3.5 mm in diameter and 4 mm in height, making it suitable for compact electronic circuits. Ceramic disc capacitors like this are typically employed in applications such as frequency tuning, filtering, and impedance matching in radio frequency (RF) circuits and telecommunications devices. The robust dielectric properties of the ceramic material ensure reliability and stability in demanding electrical environments. With its precise specification, this component is ideal for integration in high-frequency resonance and timing circuits.

Type	Radial lead
Capacity	8.2pF
Content	1
CS	2.54mm
Diameter	3.5mm
Dimensions	(Ø x H) 3.5 mm x 4 mm
Height	4mm
Material	Ceramic
Material properties	NPO
Max. temperature	+85°C
Min. temperature	-55°C
Nominal Voltage	100V DC
Product Type	Ceramic disc capacitor
Tolerance ±	5%
