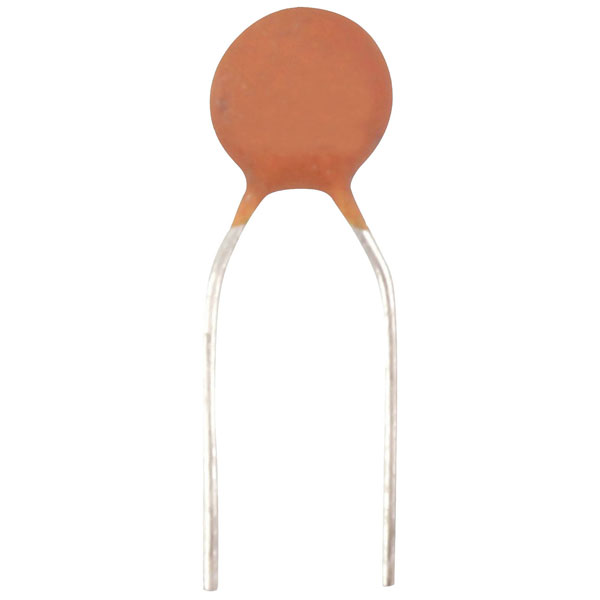

TRU COMPONENTS 1556954 Ceramic disc capacitor 1000 pF 100 V 10% 4x5 mm Radial

TRU COMPONENTS 1556954 is a ceramic disc capacitor designed for applications requiring reliable performance in compact electronic circuits. This specific capacitor features a capacitance of 1000 pF with a voltage rating of 100 V DC and a tolerance of 10%, making it suitable for decoupling, filtering, and timing applications. Its radial lead configuration facilitates easy installation on PCB assemblies, while the dimensions of 4 mm in diameter and 5 mm in height allow for efficient use of space in dense circuit layouts. The utilisation of a ceramic dielectric ensures stable operation across a wide temperature range, making this component ideal for use in consumer electronics, communication equipment, and power supply circuits.

Type	Radial lead
Capacity	1000pF
Content	1
CS	2.54mm
Diameter	4mm
Dimensions	(Ø x H) 4 mm x 5 mm
Height	5mm
Material	Ceramic
Material properties	K2000
Max. temperature	+85°C
Min. temperature	-55°C
Nominal Voltage	100V DC
Product Type	Ceramic disc capacitor
Tolerance ±	10%
