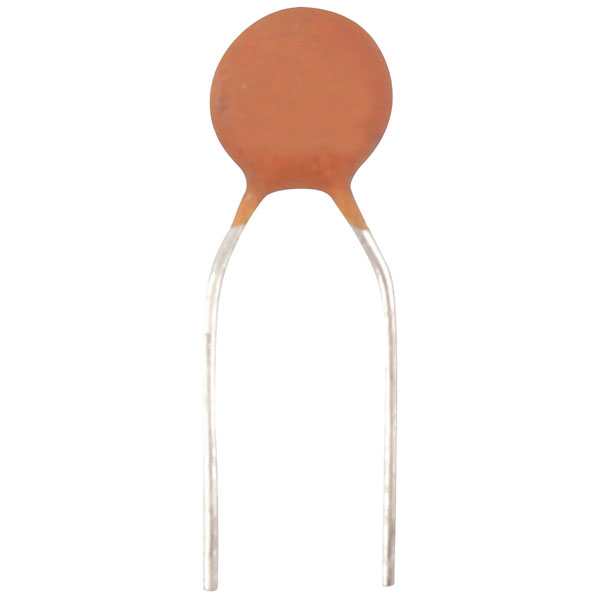

TRU COMPONENTS 1556856 Ceramic disc capacitor 22 pF 100 V DC 5% Radial lead

TRU COMPONENTS 1556856 is a ceramic disc capacitor designed with a capacitance value of 22 pF and a voltage rating of 100 V DC, maintaining a tolerance of 5%. Engineered with radial leads, this component has a compact size measuring 3.5 mm in diameter and 4 mm in height, making it suitable for space-constrained circuit designs. Ceramic capacitors like this one are widely utilised in a variety of electronic applications such as tuning circuits, coupling, and bypass applications due to their stability and reliability. The part's construction ensures optimal performance in general electronic devices, serving effectively in both analogue and digital circuits where low capacitance values are required.

Type	Radial lead
Capacity	22pF
Content	1
CS	2.54mm
Diameter	3.5mm
Dimensions	(Ø x H) 3.5 mm x 4 mm
Height	4mm
Material	Ceramic
Material properties	NPO
Max. temperature	+85°C
Min. temperature	-55°C
Nominal Voltage	100V DC
Product Type	Ceramic disc capacitor
Tolerance ±	5%
