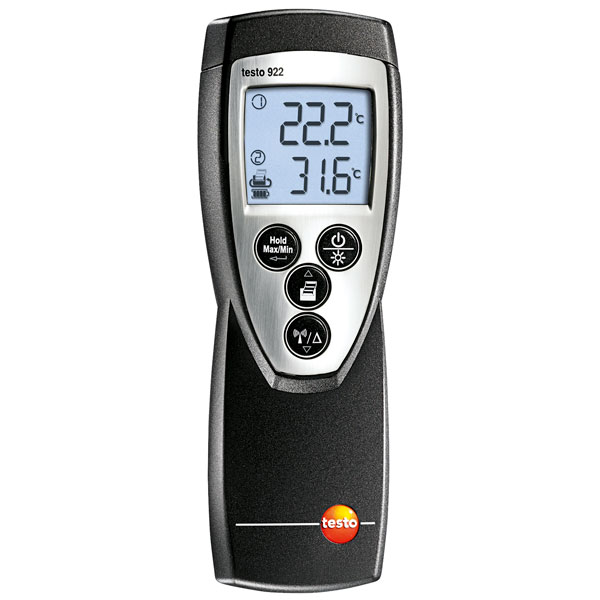

The Testo 922 temperature measuring instrument is ideal for measuring differential temperature in the sanitary and HVAC/R sector. The 2-channel temperature measuring instrument measures 2 temperatures in parallel and can determine the differential temperature in a matter of seconds. Once the measurement is complete, you can safely store your equipment in the handy bag supplied.
The set also includes two surface temperature probes for pipe-work with Velcro fasteners. The probes are ideal for pipes with diameters of up to 120mm. The thermocouple sensor for measuring temperature is attached to a 20mm wide, 395mm long strip and has a 1.5m cable.
- Temperature inputs 2x - TC Type K (NiCr-Ni)
- Measuring range: -50 to +1000°C
- Accuracy: ±(0.5°C + 0.3% of mv) (-40 to +900°C), ±(0.7°C + 0.5% of mv) (remaining ranges), ±0.1°C (-50 to +199.9°C)
- Resolution: 0.1°C (-50.0 to 199.9°C), 1°C (remaining ranges)
- Operating temperature: -20 to +50°C
- Housing: ABS
- Battery type: 9V, PP3
- Battery life: 200 hours (probe connected, backlight off)
- Dimensions: 182 x 64 x 40mm
- Weight: 171g
- Manufacturer's warranty: 2 years
- Testo type 0563 9222 922
| Data Logging Function |
Yes |
| Number of Channels |
2 |
| Sensor Type |
K type |
| Temperature Range |
-50 to +1000°C |
| Type |
Thermometer |
