Tele 110301 E1ZTP Staircase Light Timer Surge Switch 230VAC 0.5-12min

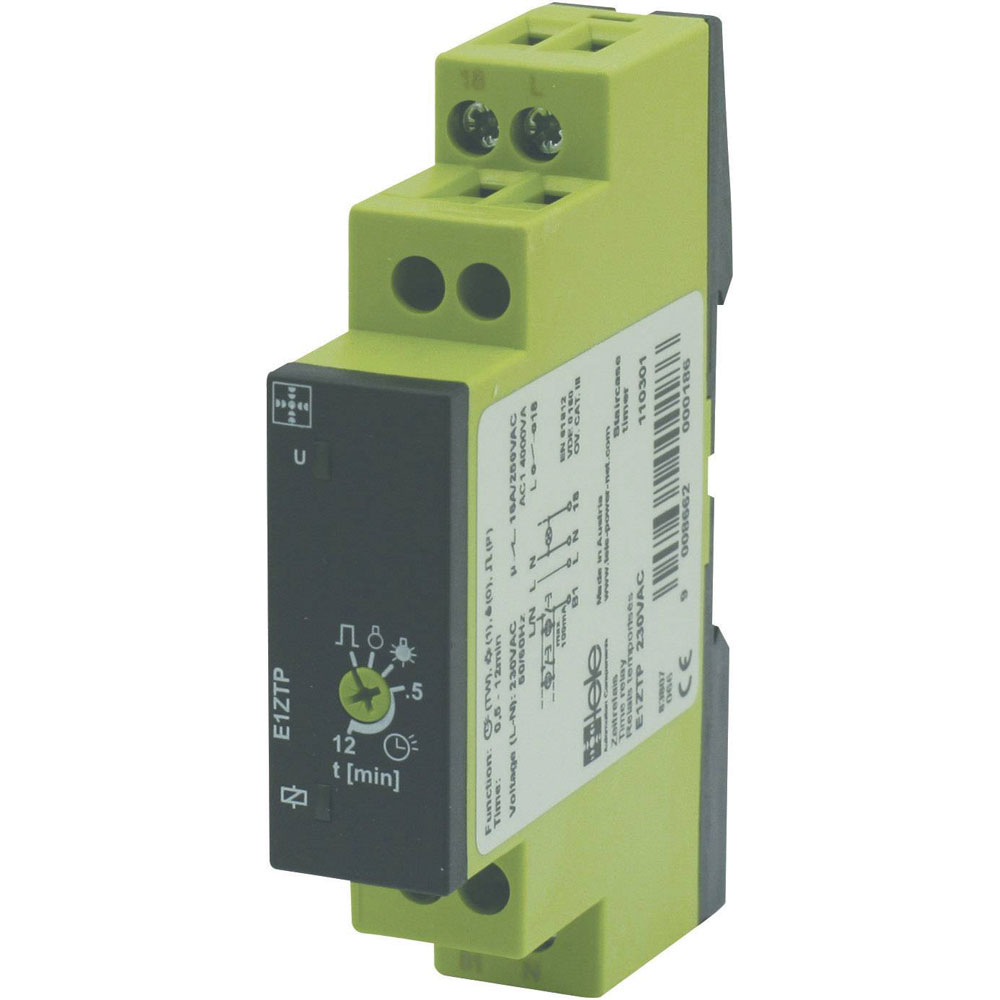

The tele 110301 E1ZTP 230V AC is a multifunction staircase multiway switch, featuring a time range from 0.5 to 12 minutes with one change-over. It is typically used as an automatic light or delay switch in staircases to ensure controlled lighting. The device is rail mountable and offers surge protection, making it reliable for managing timed lighting applications.

Type	Staircase multiway switch
Ambient temperature	-25 - +55°C
Connection	Screw terminal
Contact Type	1 hange-over°C
Depth	63mm
Dim (W x H x D)	17.5 x 87 x 63mm
Height	87mm
IP Rating	IP40, IP20
Max. operating voltage [AC]	230V
Maximum Temperature	+55°C
Min. operating voltage [AC]	230V
Min. temperature	-25°C
Misc Attribute 1	Staircase lighting timer, impulse relays (4 functions)
Misc Attribute 2	E1ZTP 230V
Misc Attribute 3	Multifunction
Misc Attribute 4	E1ZTP 230 ACV
Switching Capacity	16 A/250V AC
Switching current (max.)	16A
Switching voltage (max.) [AC]	250V
Time range ( .)	0.5min
Time range (max.)	12min
Time Range (s)	12min
Width	17.5mm
