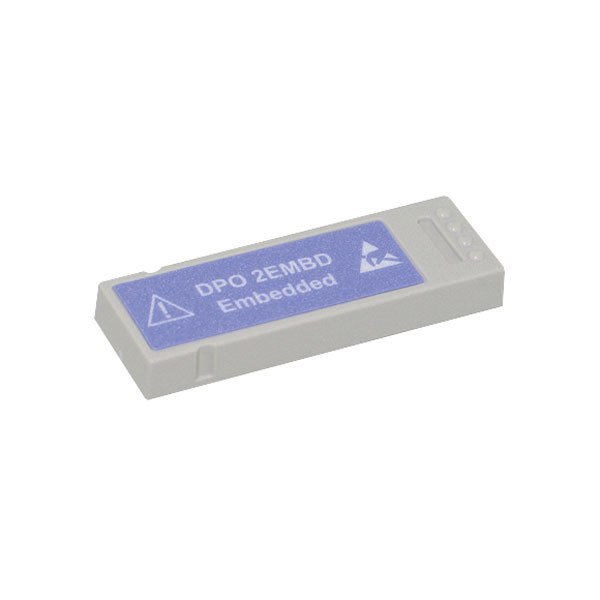

Tektronix DPO2EMBD Embedded Serial Trigger and Analysis Module

The Tektronix DPO2EMBD is an Embedded Serial Triggering and Analysis Module. This module enables triggering on packet-level information on I²C and SPI buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.

• Automated Serial Triggering, Decode, and Search options for I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I2S/LJ/RJ/TDM
• Trigger on all the critical elements of a serial bus such as address, data, etc
• Decode all the critical elements of each message. No more counting 1s and 0s
• Search through long acquisitions using user-defined criteria to find specific messages
• Event table shows decoded serial bus activity in a tabular, time-stamped format for quick summary of system activity
• Export Event table data to .csv format
• Manufacturer's part: Tektronix DPO2EMBD
