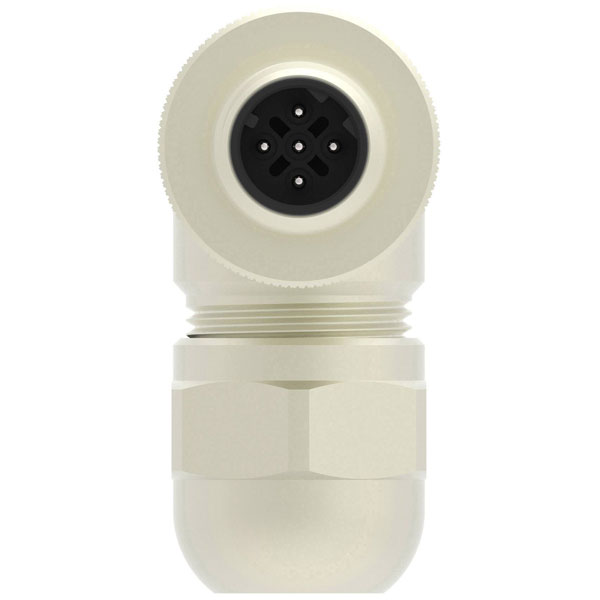

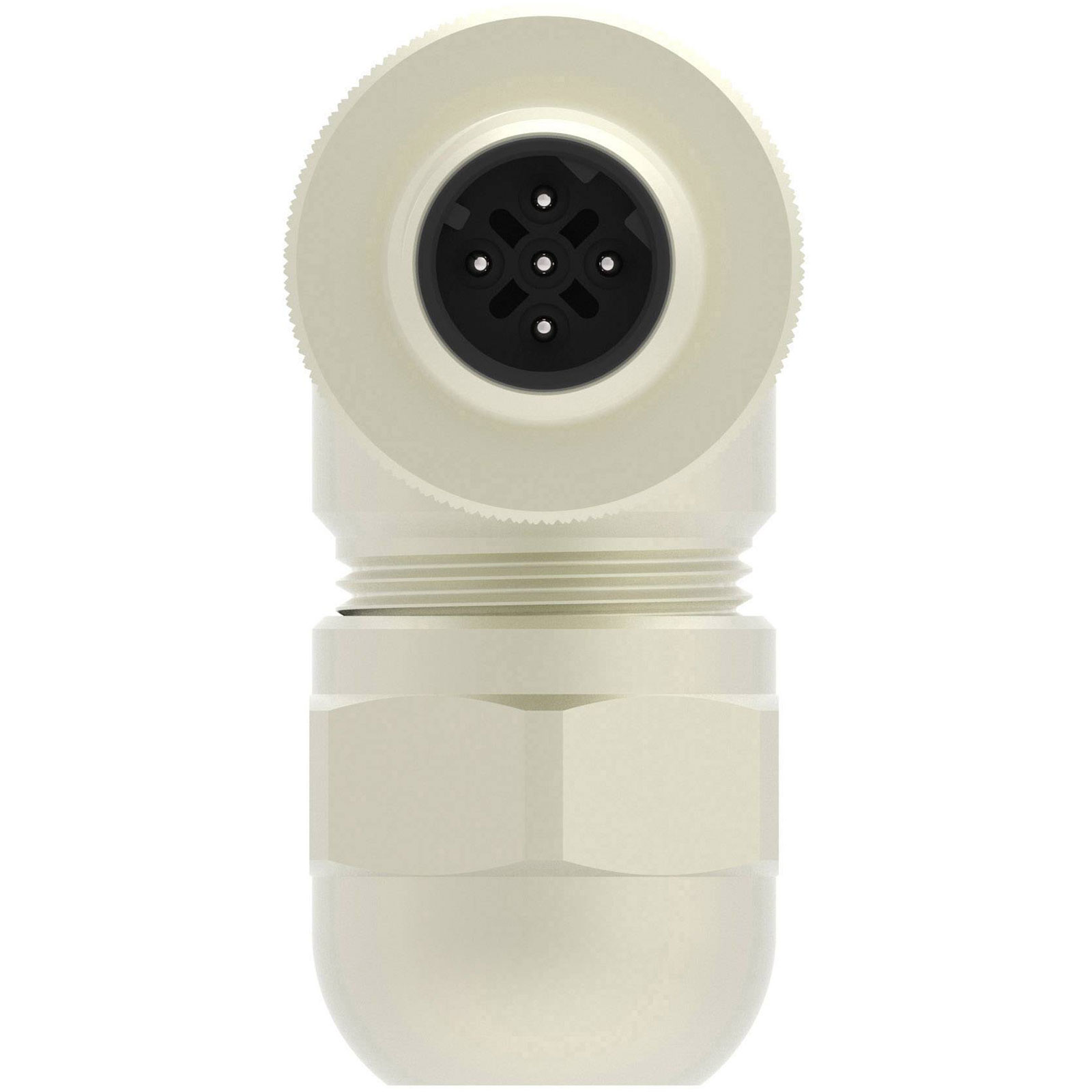

TE Connectivity T4113511051-000 M12 Plug 5-Pin RJ Right Angle 1pc

TE Connectivity manufactures the T4113511051-000, a right-angle M12 plug sensor/actuator connector with five pins. This connector is designed to provide reliable electrical connections in industrial automation and control applications, supporting efficient communication between sensors and actuators. Its robust construction makes it suitable for use in harsh environments.

Type	Plug, right angle
Number of Contacts	5
Connector Size	M12
Gender	Plug
Assembly Type	Electrical Connector
Circuit Application	Signal
Circular Connector Contact Type	Pin
Circular Connector Insulation Material Type	Polyamide 66 GF25
Circular Connector Shell Size	20
Circular Connector Type	Plug
Coding	D
Colour	Silver
Connector & Contact Terminates To	Wire & Cable
Connector Mounting Type	Cable Mount (Free-Hanging)
Connector Product Type	Connector Assembly
Connector standard	Sensor connector
Connector System	Cable-to-Cable
Contact Current Rating (Max)	4
Contact Material	Brass nickel plated
Contacts Preloaded	Yes
Current Rating	4A
Durability rating	100
Factory Installed Backshell	With
Hermetically Sealed	Yes
IP Rating	IP67
Mating Alignment	With
Mating Alignment Type	Keyed
Mating Retention Type	Threaded Coupling
max. cross section	0.82mm²
Max. temperature	+85°C
Min. temperature	-40°C
Nominal Voltage	60V
Number of Positions	5
Number of Power Positions	0
Number of Signal Positions	5
Operating Temperature Range	-40 – 185
Operating Voltage	60
Polarization Code	D
Primary Product colour	Black
Reverse Gender	Yes
ROHS	Yes with Exemption
RoHS Version	2011/65/EU, 2015/863
Sealable	Yes
Shell Base Material	Copper Alloy
Shell Plating Material	Nickel
Shell Type	Metal
Shielded	Yes
Thread type (wiring and installation)	PG7
Thread type connection side	M12
UL Flammability Rating	UL 94HB
Wire Gauge (mm²)	0.20mm²
Wire Size	18 – 24
