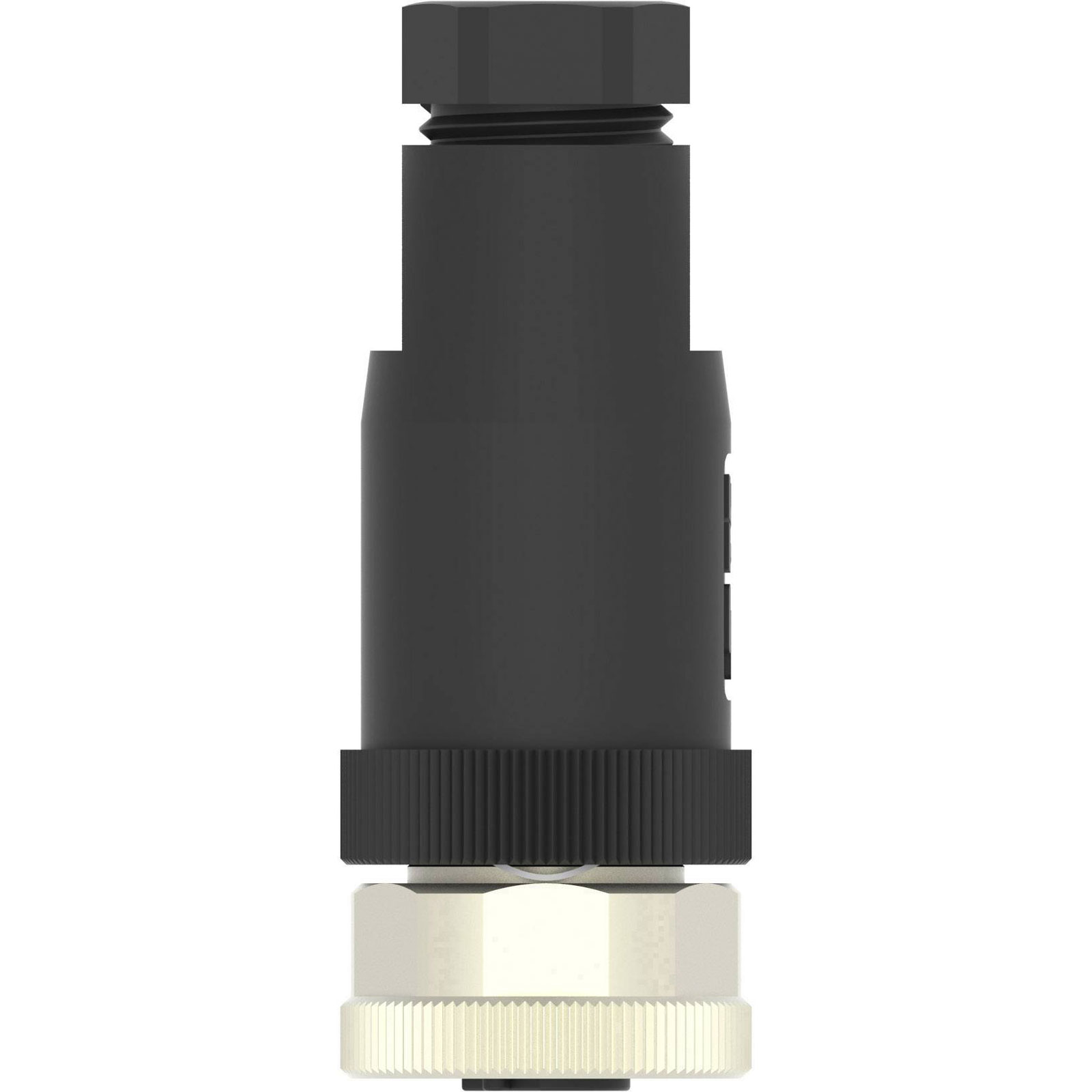

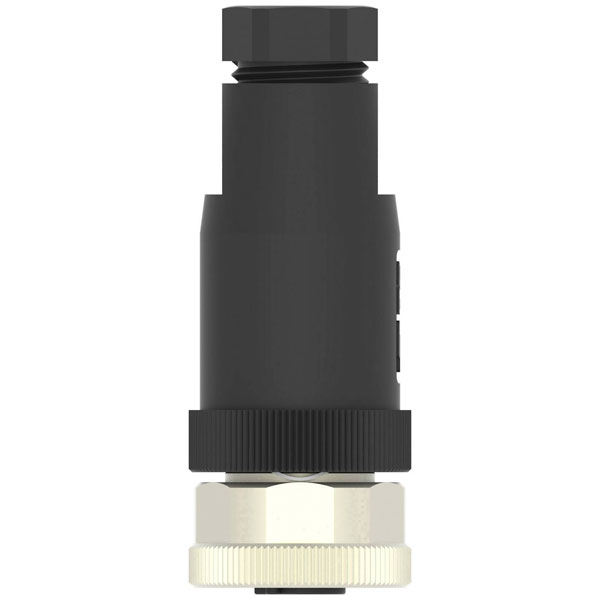

TE Connectivity T4110401041-000 M12 Socket 4-Pin Straight 1 pc

The TE Connectivity T4110401041-000 is a straight M12 socket sensor/actuator connector featuring four pins. It is designed for reliable connectivity in industrial applications, offering robust performance. Commonly used in automation and process control systems, this connector ensures secure and efficient signal or power transmission.

Type	Socket, straight
Number of Contacts	4
Connector Size	M12
Gender	Socket
Assembly Type	Electrical Connector
Circuit Application	Signal
Circular Connector Contact Type	Socket
Circular Connector Insulation Material Type	Polyamide 66 GF25
Circular Connector Shell Size	20
Circular Connector Type	Receptacle
Coding	B
Colour	Black
Connector & Contact Terminates To	Wire & Cable
Connector Mounting Type	Cable Mount (Free-Hanging)
Connector Product Type	Connector Assembly
Connector standard	Sensor connector
Connector System	Cable-to-Cable
Contact Current Rating (Max)	4
Contact Material	Brass nickel plated
Contacts Preloaded	Yes
Current Rating	4A
Durability rating	100
Factory Installed Backshell	No
Hermetically Sealed	Yes
IP Rating	IP67
Mating Alignment	With
Mating Alignment Type	Keyed
Mating Retention Type	Threaded Coupling
max. cross section	0.82mm²
Max. temperature	+85°C
Military Spec	False
Min. temperature	-40°C
Nominal Voltage	250V
Number of Positions	4
Number of Power Positions	0
Number of Signal Positions	4
Operating Temperature Range	-40 – 185
Operating Voltage	250
Packaging Quantity	1
Polarization Code	B
Primary Product colour	Black
REACH	Compliant
Reverse Gender	Yes
ROHS	Yes
Sealable	Yes
Shell Base Material	Plastic
Shell Plating Material	Unplated
Shell Type	Plastic
Shielded	No
Thread type (wiring and installation)	PG7
Thread type connection side	M12
UL Flammability Rating	UL 94HB
Wire Gauge (mm²)	0.20mm²
Wire Size	18 – 24
