TE Connectivity DT06-3S-C015 DT Socket 3-Pin Straight With Housing

TE Connectivity
Order Code:

07-5290

Brand: TE Connectivity MPN: DT06-3S-C015 EAN-13: 2050003953467
Qty Unit Price (Ex VAT)
3+ £1.34
10+ £1.23
100+ £1.15
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
391 in stock, despatched in 4 working days

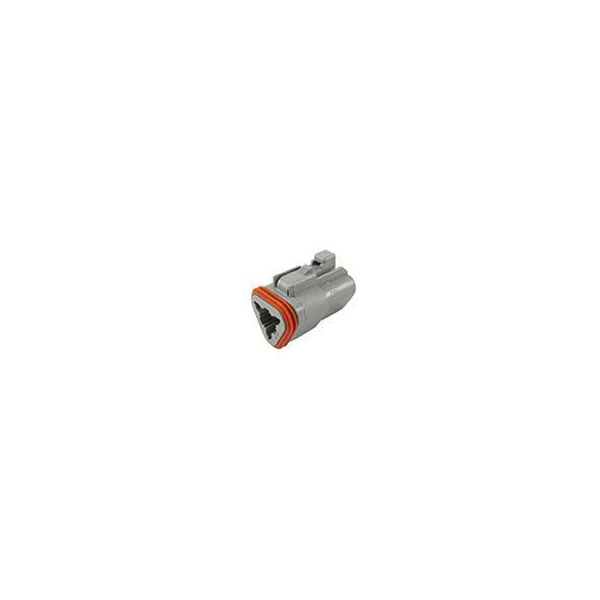

The TE Connectivity DT06-3S-C015 is a robust connector plug designed for secure connections.

This 3-position female shrouded plug is grey and part of the DT Series.

It is built to withstand harsh environments, making it ideal for automotive and industrial applications.

Its sealed design ensures protection against dust and moisture ingress.


Type Socket, straight
Number of Contacts 3
Gender Female
Cable Ø (max.) 3.68mm
Cable Ø range 1.35 - 3.68 mm
Cable Ø up to 1.35mm
Case Material Thermoplastic material
Colour Grey
Connection Crimp
Connection Angle 180°
Contact Gender FEMALE
Cross Section 2 mm² (max)
Current Rating 13A
IP Rating IP67
Max Operating Temperature 125
max. cross section 2mm²
Max. temperature +85°C
Min Operating Temperature -55
Min. temperature -40°C
Nominal Voltage 1500V AC
Rated Current (Signal) 13
Series DT
Termination Type CRIMP
Total Number of Contacts 3
Wire Gauge (AWG) 20 - 14
