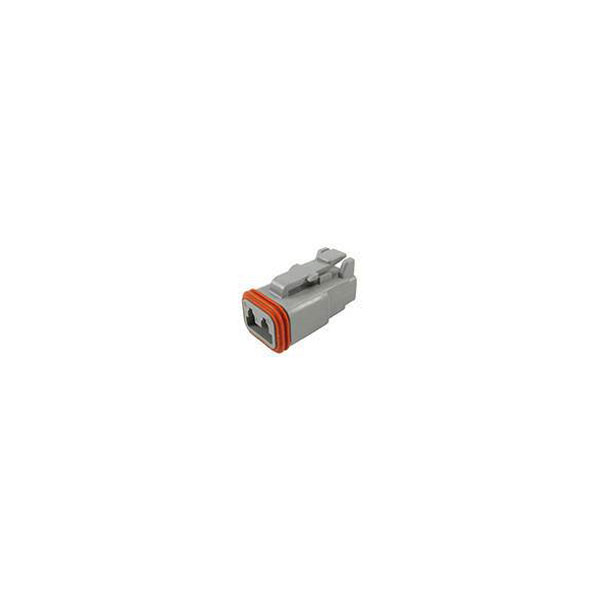

TE Connectivity DT06-2S-C015 DT Socket 2-Pin Straight Housing & Contacts

MPN: DT06-2S-C015
Brand: TE Connectivity
EAN-13: 2050003953443
Order Code: 07-5276
Country of Origin: USA

RoHS Compliant
Free UK shipping available

View Full Product Range (6)

Inc VAT

Qty	Unit Price (Ex VAT)
10+	£0.695

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 1,938 in stock

Product Details
Product Range
Data Sheets

TE Connectivity's DT06-2S-C015 is a female shrouded plug with 2 positions and an E seal.

It is designed for secure connections in environments requiring reliable performance.

This connector is typically used in automotive and industrial applications.

The shrouded design offers enhanced protection against environmental factors.

Type	Socket, straight
Number of Contacts	2
Gender	Female
Number of Rows	1
Cable Ø (max.)	3.68mm
Cable Ø range	1.35 - 3.68mm
Cable Ø up to	1.35mm
Case Material	Thermoplastic material
Colour	Grey
Connection	Crimp
Connection Angle	180°
Contact Gender	FEMALE
Cross Section	2 mm² (max)
Current Rating	13A
IP Rating	IP67
max. cross section	2mm²
Maximum Operating Temperature	125
Maximum Temperature	+70°C
Min. temperature	-25°C
Minimum Operating Temperature	-55
Nominal Voltage	250V AC
Number of pins	2
Rated Current (Signal)	13
Series	DT
Termination Type	CRIMP
Total Number of Contacts	2
Wire Gauge (AWG)	20 - 14
