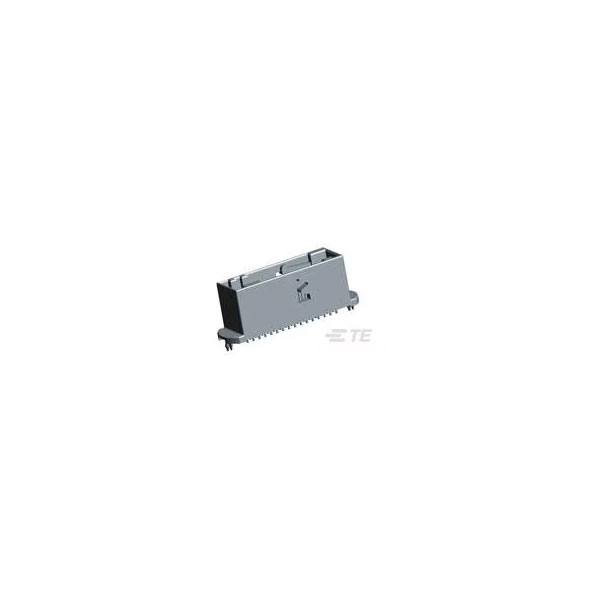

TE Connectivity 966658-2 Connector Pin Header 2X16POS Male Unshrouded

TE Connectivity
Order Code:

14-1176

Brand: TE Connectivity MPN: 966658-2
Qty Unit Price (Ex VAT)
150+ £1.55
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 150
3,396 in stock, despatched in 5 working days

TE Connectivity's 966658-2 is a connector pin header with 2x16 positions.

It is a male unshrouded type offering straightforward integration.

The 966658-2 is commonly used in PCB interfaces and electronic modules.

Its open frame design allows for versatile connectivity applications.


Number of Positions 32
Pitch 2.54mm
Number of Rows 2
Circuit Application Signal
Colour Blue
Connector System Wire-to-Board
Contact Finish - Mating TIN
Contact Material Bronze, Brass
Contact Plating Gold, Tin
Contact Shape Square
Contact Type Male Pin
Depth 15.6mm
ELV Compliant
Flammability Rating UL94 HB
Gender Male
Height 20.2mm
Housing Colour Blue
Insulation Colour Blue
Insulation Material PBT
Length 57.6mm
Max Operating Temperature 100°C
Min Operating Temperature -30°C
Mount Through Hole
Number of Contacts 32
Number of Signal Positions 32
Orientation Straight
Package Quantity 288
Packaging Tray
PCB Mount Retention With
Radiation Hardening No
RoHS Compliant Yes
Sealable No (Without)
Series AMPMODU MOD II
Shielding Unshielded
Tab Thickness 0.024inch
Tab Width 0.024inch
Termination Solder
Voltage Rating 12v
Width 15.6mm
