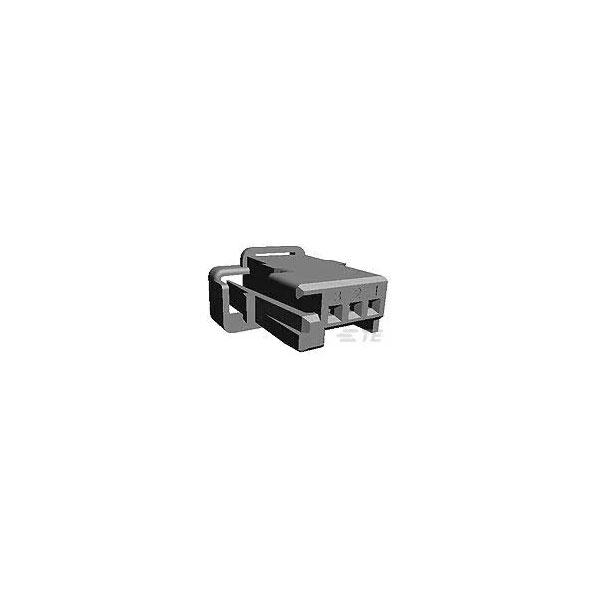

TE Connectivity 953697-1 Combination Line Connector 3 Contacts Female

MPN: 953697-1
Brand: TE Connectivity
Order Code: 14-1310
Country of Origin: China

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
1000+	£0.350

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1000

Despatched within 5 working days - 4,200 in stock

Product Details
Quick Quote

TE Connectivity, part number 953697-1, is a combination line connector with three female contacts.

It is designed for secure and reliable connectivity in electrical systems.

Typical applications include automotive and industrial environments where dependable connections are essential.

The connector ensures robust performance under varying conditions.

Gender	Female
Body Material	PBT
Circuit Application	Signal
Colour	Black
Connector System	Wire-to-Wire
Contact Type	Female Socket
Depth	17.6mm
ELV	Compliant
Flammability Rating	UL94 HB
Height	17.6mm
Housing Colour	Black
Hybrid Connector	No
Length	13.9mm
Material	Polybutylene
Mating Tab Width	0.025inch
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Mount	Free Hanging, Cable
Number of Contacts	3
Number of Positions	3
Number of Rows	1
Orientation	Straight
Package Quantity	6000
Packaging	Box
Pitch	2.54
Polarized	Yes
RoHS Compliant	Yes
Sealable	No (Without)
Series	Micro Quadlok
Serviceable	Yes
Strain Relief	No (Without)
Termination	Crimp
Width	8.6mm
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	18AWG
Wire/Cable Gauge	28AWG
