TE Connectivity 926895-1 MATE-N-LOK Crimp Contact CuZn30 600V 24-18 AWG

TE Connectivity
Order Code:

50-1737

Brand: TE Connectivity MPN: 926895-1
Qty Unit Price (Ex VAT)
500+ £0.084
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 500
651 in stock, despatched in 4 working days

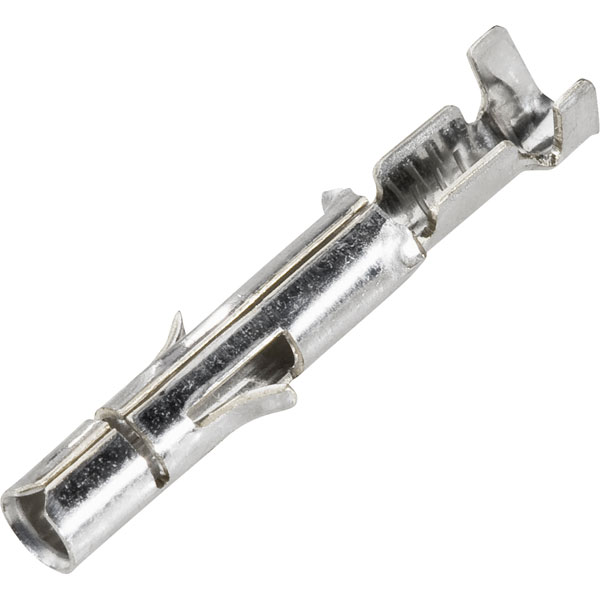

The TE Connectivity Universal MATE-N-LOK Crimp Contact 600V, 24-18 AWG, CuZn Contact is a socket contact for plug/socket connector housing; supplied loose, for crimping.


  • Universal MATE-N-LOK product line
  • Wire-to-wire
  • Applies to wire/cable
  • Socket contact type
Type Connector Contacts
Approvals UL
Circuit Application Power
Compatible Insulation Diameter Range .039 – .098
Compatible With Agency/Standards Products VDE
Connector System Wire-to-Wire
Contact Base Material Brass
Contact Current Rating 19a
Contact Current Rating (Max) 19
Contact Gender Female
Contact Material Brass
Contact Mating Area Plating Material Tin (Sn)
Contact Plating Tin
Contact Retention Within Housing With
Contact Shape & Form Split
Contact Type Socket
Current Rating 19a
Depth 3.4mm
Gender Female
Insulation Diameter 0.098inch
Length 20.1mm
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Mount Cable
Operating Temperature Range -67 – 221
Operating Voltage 600
Orientation Straight
Package Quantity 1000
Packaging Box
Packaging Method Box
Packaging Quantity 1000
Product Terminates To Wire & Cable
Reach SVHC Compliant No
RoHS Compliant Yes
Series Universal MATE-N-LOK
Termination Crimp
Termination Method to Wire & Cable Crimp
VDE Tested Yes
Voltage Rating 600v
Wire Gauge (Max) 18AWG
Wire Gauge (Min) 24AWG
Wire Insulation Support Without
Wire Size 24 – 18
Wire/Cable Gauge 18AWG
Wire/Cable Type Discrete
