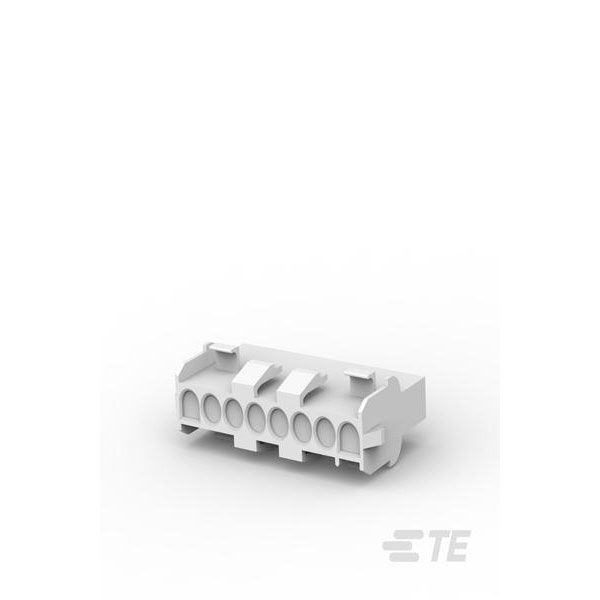

The TE Connectivity 926308-1 is a male crimp connector with eight contacts.
It is unshrouded, providing straightforward connectivity.
This component is often used in telecommunications and data applications.
The connector ensures reliable electrical performance and durability.
| Type |
Rectangular Wire & Cable Connectors & Housings |
| Current Rating |
19a |
| Gender |
Female |
| Approvals |
CSA |
| Centerline (Pitch) |
6.35mm |
| Circuit Application |
Power & Signal |
| Color |
Natural |
| Compatible With Agency/Standards Products |
VDE |
| Compatible With Approved Standards Products |
UL E28476 |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Cap |
| Connector Mounting Type |
Panel Mount |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Wire |
| Contact Gender |
Female |
| Contact Layout |
Inline |
| Contact Retention |
No (Without) |
| Contact Retention Within Housing |
Without |
| Contact Type |
Pin |
| Depth |
27.4mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Housing Color |
Natural |
| Housing Material |
PA 6.6 |
| Lead Free |
Lead Free |
| Length |
57.2mm |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
600v |
| Max Voltage Rating (DC) |
600.6kV |
| Min Operating Temperature |
-67°C |
| Mount |
Panel |
| Number of Circuits |
8 |
| Number of Contacts |
8 |
| Number of Positions |
8 |
| Number of Rows |
1 |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
600 |
| Orientation |
Straight |
| Package Quantity |
900 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
900 |
| Panel Mount Feature |
With |
| Panel Mount Feature Type |
Patch & Tabs |
| Panel Thickness |
2.29mm |
| Pitch |
6.35mm |
| Primary Product colour |
Natural |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
Universal MATE-N-LOK |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| UL Flammability Rating |
UL 94V-2 |
| UL Rating |
Recognized |
| VDE Tested |
Yes |
| Voltage Rating |
600v |
| Width |
27.4mm |
| Wire Gauge (Max) |
30AWG |
| Wire Gauge (Min) |
10AWG |
| Wire/Cable Gauge |
30AWG |
