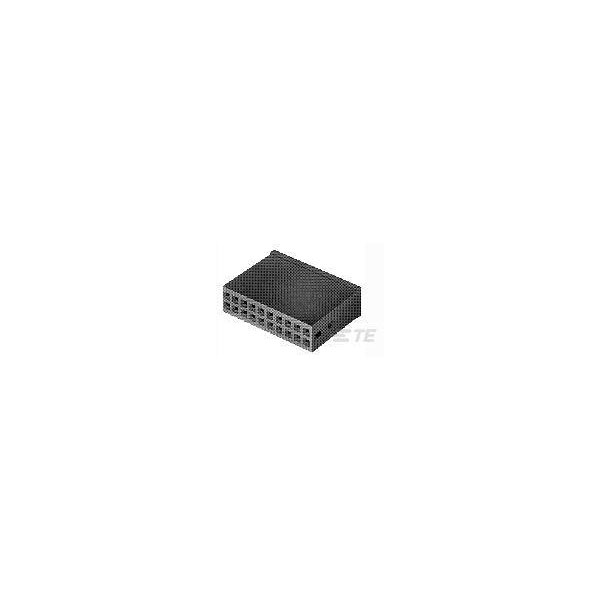

TE Connectivity 925370-8 AMPMODU Mod IV REC HSG 2X8P Carton

TE Connectivity
Order Code:

07-5067

Brand: TE Connectivity MPN: 925370-8 EAN-13: 2050006927502
Qty Unit Price (Ex VAT)
5+ £1.40
200+ £1.25
750+ £1.04
3000+ £0.834
6000+ £0.778
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
19 in stock, despatched in 4 working days

TE Connectivity's 925370-8 is a part of the AMPMODU Mod IV V series, known for its reliability in electronic connector applications. This carton component offers robust performance, making it suitable for use in a variety of electronic systems and equipment. It is typically utilised in sectors requiring high-quality modular connectors, such as telecommunications and industrial machinery.
Type Rectangular Wire & Cable Connectors & Housings
Pitch 2.54mm
Number of Ways 16
Number of Rows 2
Mounting Type Cable Mount (Free-Hanging)
Circuit Application Signal
Color Green
Connector & Contact Terminates To Wire & Cable
Connector & Housing Type Receptacle
Connector Height .21
Connector Length 4.99
Connector Product Type Housing
Connector System Wire-to-Board
Contact Current Rating (Max) 3
Contact Gender Female
Contact Material Bronze
Contact Type Socket
Current Rating 3a
Depth 16.7mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Rating Standard Part - Not Glow Wire
Height 0.21inch
Housing Color Green
Housing Material Polyamide 6.6 GF
Lead Free Not Applicable
Length 4.99inch
Mating Alignment No (Without)
Mating Connector Lock No (Without)
Mating Retention With
Mating Retention Type Locking
Max Operating Temperature 105°C
Max Voltage Rating (AC) 250v
Min Operating Temperature -65°C
Misc Attribute TE AMP AMPMODU Mod IV V
Mount Free Hanging, PCB, Cable
Number of Contacts 16
Number of Poles 8
Number of Positions 16
Operating Supply Voltage 250v
Operating Temperature Range -85 – 221
Operating Voltage 250
Orientation Straight
Package Quantity 25
Packaging Bulk
Packaging Quantity 25
Packaging Type Carton
Primary Product colour Green
Primary Type CONNECTOR
Radiation Hardening No
Reach SVHC Compliant No
RoHS Compliant Yes
Row Spacing 0.1inch
Row-to-Row Spacing .1
Series AMPMODU MOD IV
Strain Relief Yes (With)
Termination Crimp
Termination Method to Wire & Cable Crimp
UL Flammability Rating UL 94V-0
Width 5.5mm
