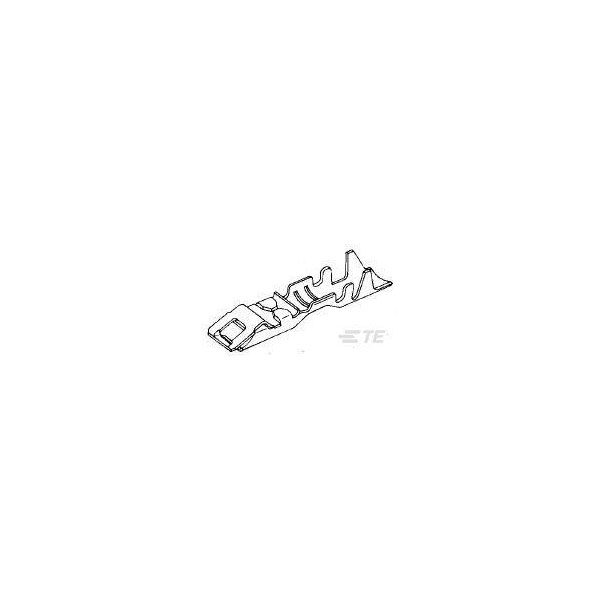

The TE Connectivity 87278-2 is a compact and reliable locking clip assembly designed for securing electrical connectors.
Its robust construction ensures durability and stability in demanding environments.
This part is typically used in automotive and industrial applications that require secure connector retention.
The 31x62 LP dimensions make it ideal for confined spaces.
| Type |
Connector Contacts |
| Approvals |
UL |
| Circuit Application |
Signal |
| Compatible Insulation Diameter Range |
.05 – .1 |
| Compatible With Approved Standards Products |
UL E28476 |
| Contact Base Material |
Phosphor Bronze |
| Contact Current Rating |
5a |
| Contact Current Rating (Max) |
5 |
| Contact Material |
Bronze |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Plating |
Gold |
| Contact Style |
Clip |
| Contact Type |
Socket |
| Contact Underplating Material |
Nickel |
| Current Rating |
5a |
| Depth |
3.42mm |
| Dielectric Withstanding Voltage (Max) |
1200 |
| ELV |
Compliant |
| Gender |
Female |
| Insulation Diameter |
2.54mm |
| Insulation Resistance |
5000 |
| Lead Free |
Lead Free |
| Length |
18.13mm |
| Mating Tab Thickness |
.031 |
| Mating Tab Width |
.062 |
| Max Operating Temperature |
105°C |
| Min Operating Temperature |
-65°C |
| Misc Attribute |
TE AMP AMP Locking Clip |
| Mount |
Cable |
| Operating Temperature Range |
-85 – 221 |
| Operating Voltage |
250 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Packaging Type |
Bag |
| PCB Contact Termination Area Plating Material |
Gold Flash |
| Product Terminates To |
Wire & Cable |
| RoHS Compliant |
Yes |
| Series |
AMPMODU |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Wire Gauge (Max) |
18AWG |
| Wire Gauge (Min) |
22AWG |
| Wire Insulation Support |
With |
| Wire Size |
642.4 – 1624 |
| Wire/Cable Gauge |
22AWG |
