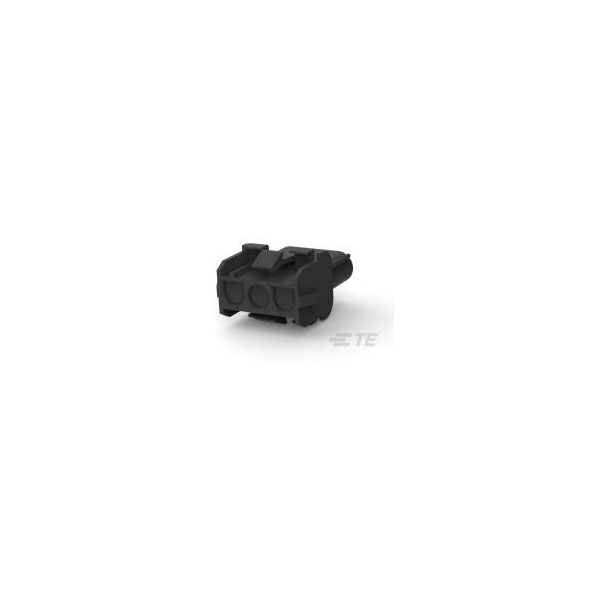

TE Connectivity 794900-1 Universal MATE-N-LOK Connector 3 Position

The TE Connectivity 794900-1 is a Universal MATE-N-LOK connector used for reliable electrical connections. This connector features a versatile design accommodating various wire sizes and configurations. It is typically employed in household appliances, automotive applications, and industrial machinery for its secure and durable connection capabilities.

Type	Rectangular Wire & Cable Connectors & Housings
Pitch	6.35mm
Number of Ways	3
Number of Rows	1
Mounting Type	Panel Mount
Approvals	CSA
Circuit Application	Power & Signal
Color	Black
Compatible With Agency/Standards Products	VDE
Compatible With Approved Standards Products	UL E28476
Connector & Contact Terminates To	Wire & Cable
Connector & Housing Type	Cap
Connector Product Type	Housing
Connector System	Wire-to-Wire
Contact Layout	Inline
Contact Retention	No (Without)
Contact Retention Within Housing	Without
Contact Type	Pin
Depth	27.43mm
ELV	Compliant
Flammability Rating	UL94 V-2
Gender	Receptacle
Glow Wire Rating	Standard Part - Not Glow Wire
Housing Color	Black
Housing Material	Nylon
Length	20.32mm
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Misc Attribute	TE AMP Universal MATE-N-LOK Connectors
Mount	Panel
Number of Contacts	3
Number of Positions	3
Operating Temperature Range	-67 – 257
Operating Voltage	600
Orientation	Straight
Package Quantity	1
Packaging	Bulk
Packaging Method	Package
Packaging Quantity	1
Packaging Type	Package
Panel Mount Feature	With
Panel Mount Feature Type	Latches
Panel Thickness	2.29mm
Primary Product colour	Black
RoHS Compliant	Yes
Sealable	No
Series	Universal MATE-N-LOK
Termination	Crimp
Termination Method to Wire & Cable	Crimp
UL Flammability Rating	UL 94V-2
UL Rating	Recognized
VDE Tested	Yes
Width	7.62mm
