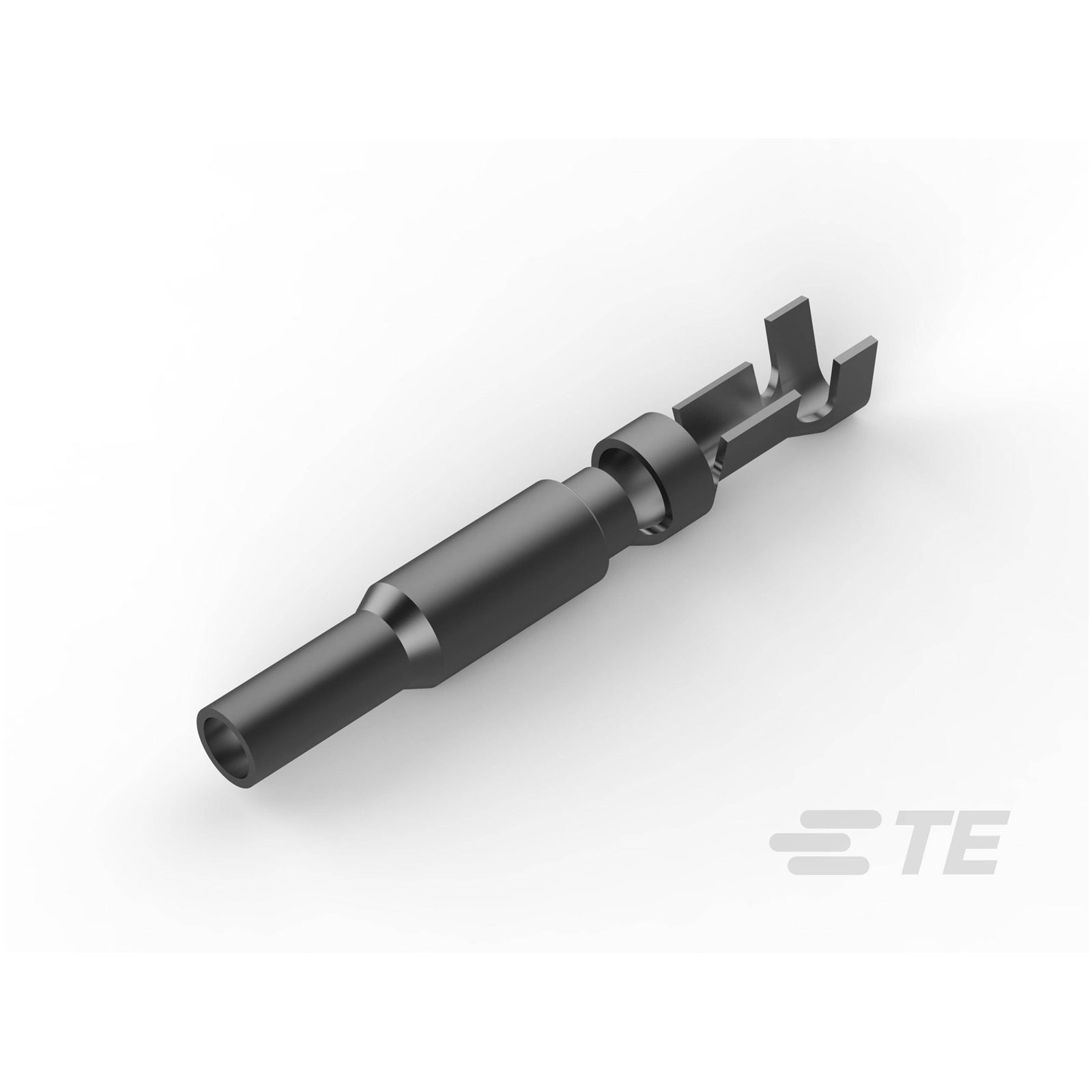

The 770253-3 is a socket contact manufactured by TE Connectivity, designed for crimp contact applications. It is typically used in electrical connectors and offers reliable electrical performance. Commonly found in automotive, industrial, and telecommunications systems, it supports high-quality signal transmission.
| Type |
Crimp contact |
| Pin or Socket |
Female |
| Wire Gauge |
0.20 - 1mm² |
| Approvals |
UL |
| Circuit Application |
Power |
| Compatible Insulation Diameter Range |
.04 – .1 |
| Compatible With Agency/Standards Products |
VDE |
| Connection |
Crimp |
| Connector System |
Wire-to-Wire |
| Connector Type |
Socket |
| Contact Base Material |
Phosphor Bronze |
| Contact Current Rating |
7a |
| Contact Current Rating (Max) |
7 |
| Contact Gender |
Female |
| Contact Material |
Bronze |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Contact Plating |
Tin |
| Contact Retention Within Housing |
Without |
| Contact surface |
Tin plated (phosphor bronze) |
| Contact Type |
Socket |
| Current Rating |
19a |
| Depth |
3.65mm |
| ELV |
Compliant |
| Gender |
Female |
| Height |
3.68mm |
| Insulation Diameter |
2.54mm |
| Length |
24.89mm |
| Manufacturer Series |
770253-3 |
| Max Voltage Rating (AC) |
600v |
| Maximum Operating Temperature |
120°C |
| Maximum Temperature |
+120°C |
| Min. temperature |
-55°C |
| Minimum Operating Temperature |
-55°C |
| Mount |
Cable |
| Nominal Current |
7A |
| Nominal Voltage |
600V AC |
| Number of Ports |
1 |
| Operating Temperature Range |
-67 – 248 |
| Operating Voltage |
600 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
1000 |
| Product Terminates To |
Wire & Cable |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Series |
MATE-N-LOK |
| Shielding |
Unshielded |
| Socket Ø |
2.18mm |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| VDE Tested |
Yes |
| Voltage Rating |
600v |
| Wire Gauge (Max) |
18AWG |
| Wire Gauge (Min) |
24AWG |
| Wire Insulation Support |
Without |
| Wire Size |
24 – 18 |
| Wire/Cable Gauge |
18AWG |
| Wire/Cable Type |
Discrete |
