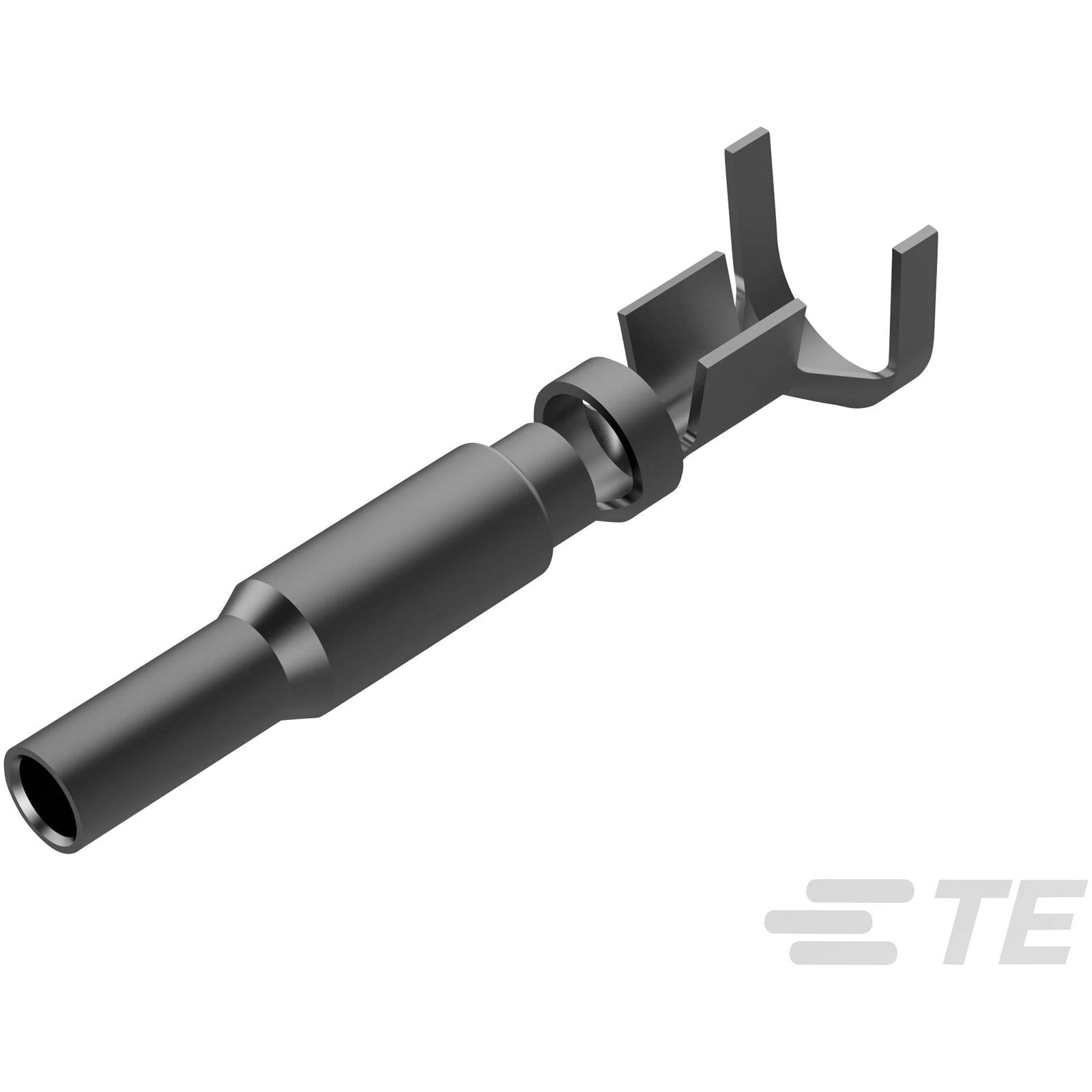

The TE Connectivity 770249-3 is a connector accessory designed for robust and reliable cable terminations.
It features an unshrouded 0.13-inch configuration, ensuring easy assembly and integration.
This component is typically used in automotive and industrial applications, providing secure electrical connections.
Its high-quality construction ensures longevity and durable performance.
| Type |
Crimp contact |
| Pin or Socket |
Female |
| Wire Gauge |
0.50 - 2mm² |
| Approvals |
UL |
| Circuit Application |
Power |
| Compatible Insulation Diameter Range |
.13 – .2 |
| Compatible With Agency/Standards Products |
VDE |
| Connection |
Crimp |
| Connector System |
Wire-to-Wire |
| Connector Type |
Socket |
| Contact Base Material |
Phosphor Bronze |
| Contact Current Rating |
7a |
| Contact Current Rating (Max) |
7 |
| Contact Gender |
Female |
| Contact Material |
Bronze |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Contact Plating |
Tin |
| Contact Retention Within Housing |
Without |
| Contact surface |
Tin plated (phosphor bronze) |
| Contact Type |
Socket |
| Current Rating |
19a |
| Depth |
5.97mm |
| ELV |
Compliant |
| Gender |
Female |
| Insulation Diameter |
0.2inch |
| Length |
24.64mm |
| Maximum Operating Temperature |
120°C |
| Maximum Temperature |
+120°C |
| Min. temperature |
-55°C |
| Minimum Operating Temperature |
-55°C |
| Mount |
Cable |
| Nominal Current |
7A |
| Nominal Voltage |
600V AC |
| Operating Temperature Range |
-67 – 248 |
| Operating Voltage |
600 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
1000 |
| Product Terminates To |
Wire & Cable |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Series |
MATE-N-LOK |
| Shielding |
Unshielded |
| Socket Ø |
2.18mm |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| VDE Tested |
Yes |
| Voltage Rating |
600v |
| Wire Gauge (Max) |
14AWG |
| Wire Gauge (Min) |
20AWG |
| Wire Insulation Support |
Without |
| Wire Size |
20 – 14 |
| Wire/Cable Gauge |
14AWG |
| Wire/Cable Type |
Discrete |
