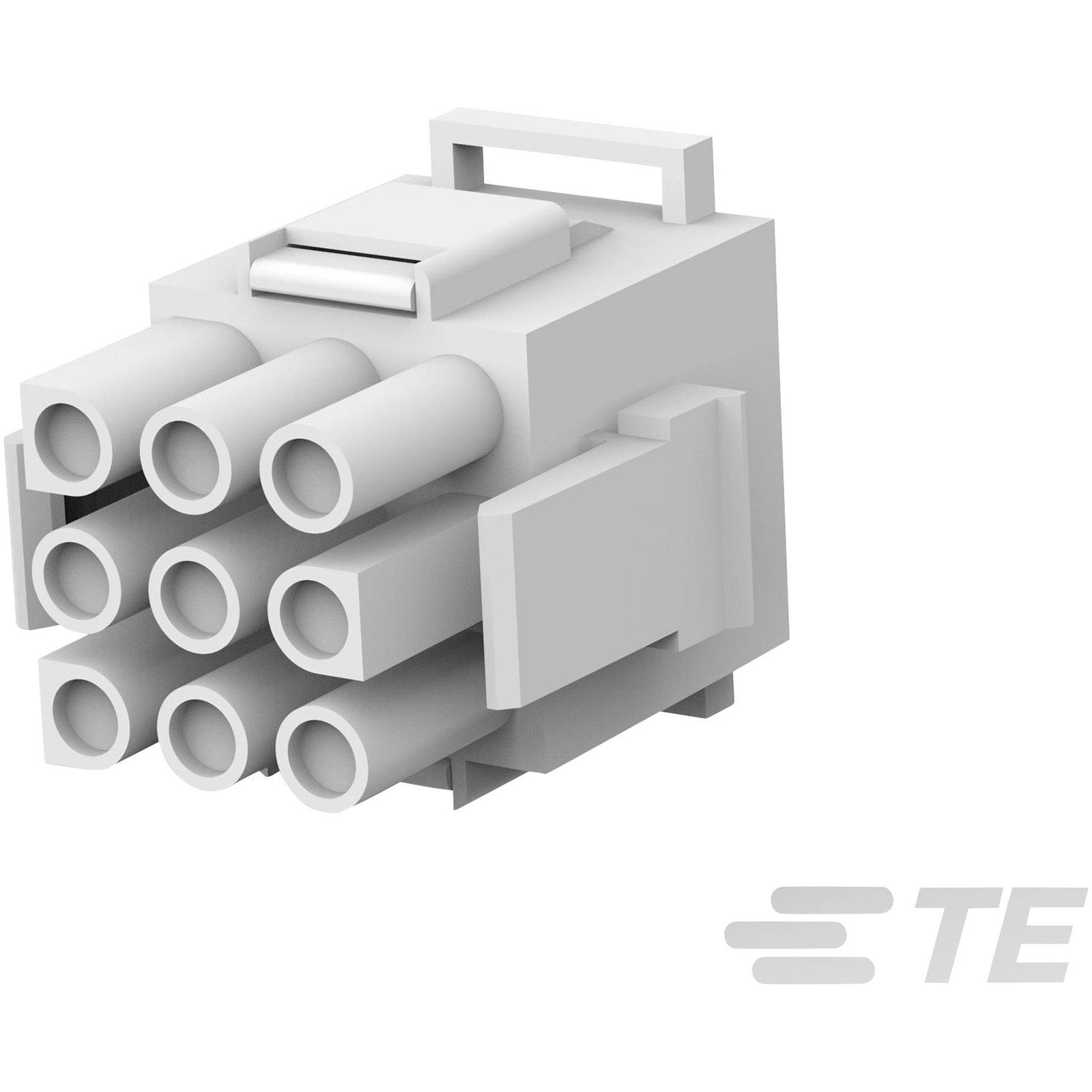

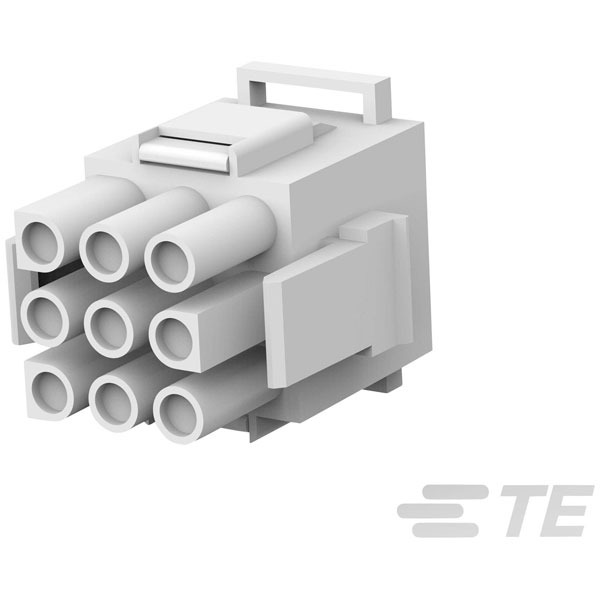

TE Connectivity offers the MATE-N-LOK pin housing cable, part number 770021-1, featuring nine pins and contact spacing of 6.35 mm. It is designed for reliable electrical connections, commonly used in applications requiring secure and efficient power distribution. This component is utilised in various electronic and industrial environments for its dependable performance and durable construction.
| Type |
Pin housing cable |
| Pitch |
6.35mm |
| Number of Ways |
9 |
| Number of Rows |
3 |
| Mounting Type |
Cable Mount (Free-Hanging) |
| Approvals |
CSA |
| Case Material |
Polyamide |
| Circuit Application |
Power & Signal |
| Color |
White |
| Compatible With Agency/Standards Products |
VDE |
| Compatible With Approved Standards Products |
UL E28476 |
| Connection |
Crimp |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Plug |
| Connector Length |
22.99 |
| Connector Product Type |
Housing |
| Connector System |
wire-to-board |
| Connector Width |
20.32 |
| Contact Layout |
Matrix |
| Contact Retention |
No (Without) |
| Contact Retention Within Housing |
Without |
| Contact Type |
Socket |
| CS |
6.35mm |
| Current Rating |
31a |
| Depth |
22.99mm |
| ELV |
Compliant |
| Factory colour |
White |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Height |
27.4mm |
| Housing Color |
White |
| Housing Material |
Nylon GF |
| Lead Free |
Lead Free |
| Length |
22.99mm |
| Material |
Nylon |
| Max Operating Temperature |
120°C |
| Max Voltage Rating (AC) |
600v |
| Max. temperature |
+120°C |
| Min Operating Temperature |
-55°C |
| Min. temperature |
-55°C |
| Mount |
Free Hanging |
| Nominal Voltage |
600V AC |
| Number of Circuits |
9 |
| Number of Contacts |
9 |
| Number of Positions |
9 |
| Operating Temperature Range |
-67 – 248 |
| Operating Voltage |
600 |
| Orientation |
Straight |
| Package Quantity |
1 |
| Packaging |
Bulk |
| Packaging Method |
Package |
| Packaging Quantity |
1 |
| Pins per row |
3 |
| Plug / Socket |
Plug, straight |
| Primary Product colour |
White |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
0.25mm |
| Row-to-Row Spacing |
.25 |
| Sealable |
No |
| Series |
MATE-N-LOK |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total number of pins |
9 |
| UL Flammability Rating |
UL 94V-0 |
| UL Rating |
Recognized |
| VDE Tested |
Yes |
| Voltage Rating |
600v |
| Width |
20.32mm |
| Wire Gauge (Max) |
30AWG |
| Wire Gauge (Min) |
10AWG |
