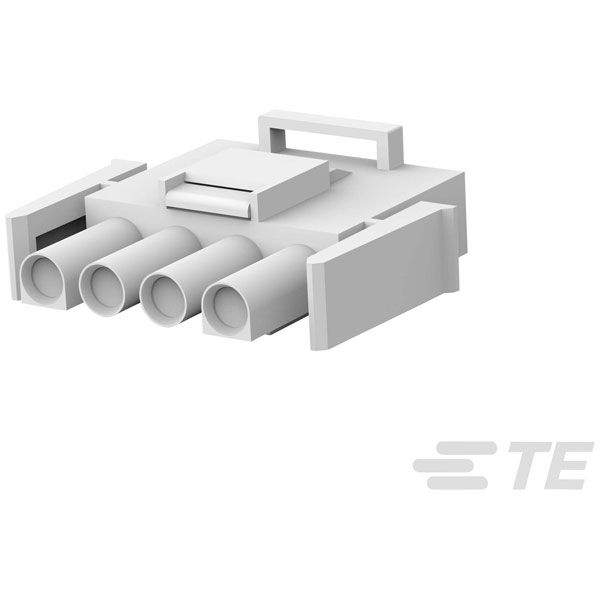

TE Connectivity manufactures the MATE-N-LOK pin housing cable with a total of 4 pins and a contact spacing of 6.35 mm, part number 770019-1. This component is typically used in electrical applications where secure and reliable connections are required. It is a versatile and durable connector suitable for various industrial and consumer electronics applications.
| Type |
Pin housing cable |
| Pitch |
6.35mm |
| Number of Ways |
4 |
| Number of Rows |
1 |
| Mounting Type |
Cable Mount (Free-Hanging) |
| Mounting Direction |
Straight |
| Approvals |
CSA |
| Case Material |
Polyamide |
| Circuit Application |
Power & Signal |
| Color |
White |
| Compatible With Agency/Standards Products |
VDE |
| Compatible With Approved Standards Products |
UL E28476 |
| Connection |
Crimp |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Plug |
| Connector Length |
26.67 |
| Connector Product Type |
Housing |
| Connector System |
wire-to-board |
| Connector Width |
22.99 |
| Contact Gender |
Male |
| Contact Layout |
Inline |
| Contact Retention |
No (Without) |
| Contact Retention Within Housing |
Without |
| Contact Type |
Socket |
| CS |
6.35mm |
| Current Rating |
31a |
| Depth |
22.99mm |
| ELV |
Compliant |
| Factory colour |
White |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Height |
14.7 |
| Housing Color |
White |
| Housing Material |
Nylon GF |
| Length |
26.67mm |
| Max Voltage Rating (AC) |
600v |
| Maximum Operating Temperature |
120°C |
| Maximum Temperature |
+120°C |
| Min. temperature |
-55°C |
| Minimum Operating Temperature |
-55°C |
| Mount |
Free Hanging |
| Nominal Voltage |
600V AC |
| Number of Circuits |
4 |
| Number of Contacts |
4 |
| Number of Positions |
4 |
| Operating Temperature Range |
-67 – 248 |
| Operating Voltage |
600 |
| Orientation |
Straight |
| Package Quantity |
1 |
| Packaging |
Bulk |
| Packaging Method |
Package |
| Packaging Quantity |
1 |
| Pins per row |
4 |
| Plug / Socket |
Plug, straight |
| Primary Product colour |
White |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
MATE-N-LOK |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total number of pins |
4 |
| UL Flammability Rating |
UL 94V-0 |
| UL Rating |
Recognized |
| VDE Tested |
Yes |
| Voltage Rating |
600v |
| Width |
22.99mm |
| Wire Gauge (Max) |
30AWG |
| Wire Gauge (Min) |
10AWG |
