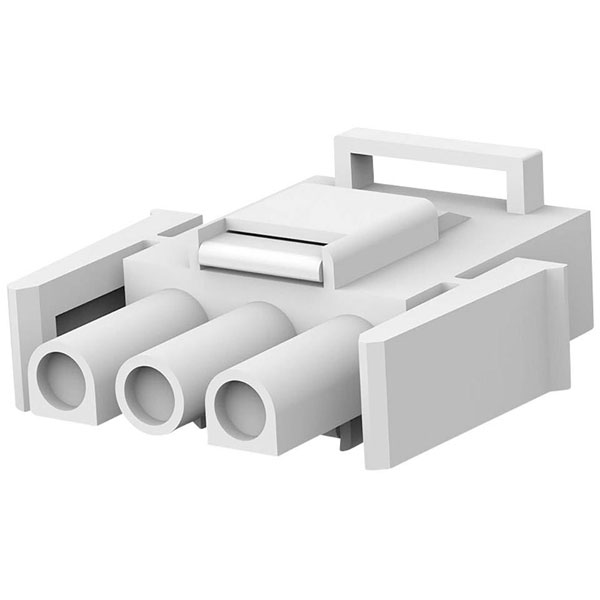

TE Connectivity's pin housing cable, part number 770018-1, features a total of three pins with a contact spacing of 6.35 mm. This component is ideal for applications requiring secure and robust electrical connections, such as in automotive or industrial equipment. The durable design supports reliable connectivity in environments where precision and reliability are paramount.
| Type |
Pin housing cable |
| Pitch |
6.35mm |
| Number of Ways |
3 |
| Number of Rows |
1 |
| Mounting Type |
Cable Mount (Free-Hanging) |
| Approvals |
CSA |
| Case Material |
Polyamide |
| Circuit Application |
Power & Signal |
| Color |
White |
| Compatible With Agency/Standards Products |
VDE |
| Compatible With Approved Standards Products |
UL E28476 |
| Connection |
Crimp |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Plug |
| Connector Length |
22.99 |
| Connector Product Type |
Housing |
| Connector System |
wire-to-board |
| Connector Width |
20.32 |
| Contact Layout |
Inline |
| Contact Retention |
No (Without) |
| Contact Retention Within Housing |
Without |
| Contact Type |
Socket |
| CS |
6.35mm |
| Current Rating |
31a |
| Depth |
22.99mm |
| ELV |
Compliant |
| Factory colour |
White |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Height |
14.7 |
| Housing Color |
White |
| Housing Material |
Nylon GF |
| Lead Free |
Lead Free |
| Length |
22.99mm |
| Material |
Nylon |
| Max Operating Temperature |
120°C |
| Max Voltage Rating (AC) |
600v |
| Max. temperature |
+120°C |
| Min Operating Temperature |
-55°C |
| Min. temperature |
-55°C |
| Mount |
Free Hanging |
| Nominal Voltage |
600V AC |
| Number of Circuits |
3 |
| Number of Contacts |
3 |
| Number of Positions |
3 |
| Operating Supply Voltage |
600v |
| Operating Temperature Range |
-67 – 248 |
| Operating Voltage |
600 |
| Orientation |
Straight |
| Package Quantity |
1 |
| Packaging |
Bulk |
| Packaging Method |
Package |
| Packaging Quantity |
1 |
| Pins per row |
3 |
| Plug / Socket |
Plug, straight |
| Primary Product colour |
White |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
MATE-N-LOK |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total number of pins |
3 |
| UL Flammability Rating |
UL 94V-0 |
| UL Rating |
Recognized |
| VDE Tested |
Yes |
| Voltage Rating |
600v |
| Width |
20.32mm |
