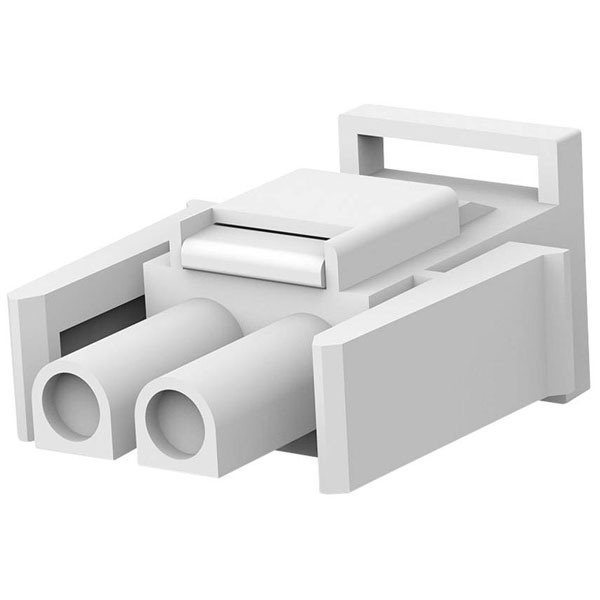

TE Connectivity manufactures the MATE-N-LOK pin housing cable, part number 770017-1, featuring a total of 2 pins with 6.35 mm contact spacing. This robust connector component is commonly used in electrical and electronic applications requiring secure and reliable connections. Its typical usage includes facilitating secure wire-to-wire or wire-to-board connections in automotive, industrial, and consumer appliances.
| Type |
Pin housing cable |
| Plug / Socket |
Plug, straight |
| Case Material |
Polyamide |
| Centerline (Pitch) |
6.35mm |
| Circuit Application |
Power & Signal |
| Compatible With Agency/Standards Products |
VDE |
| Compatible With Approved Standards Products |
UL E28476 |
| Connection |
Crimp |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Plug |
| Connector Length |
22.99 |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Connector Product Type |
Housing |
| Connector System |
wire-to-board |
| Connector Width |
13.97 |
| Contact Layout |
Inline |
| Contact Retention Within Housing |
Without |
| Contact Type |
Socket |
| CS |
6.35mm |
| Factory colour |
White |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Housing Material |
Nylon GF |
| Max. temperature |
+120°C |
| Min. temperature |
-55°C |
| Nominal Voltage |
600V AC |
| Number of Positions |
2 |
| Number of Rows |
1 |
| Operating Temperature Range |
-67 – 248 |
| Operating Voltage |
600 |
| Packaging Method |
Package |
| Packaging Quantity |
1 |
| Pins per row |
2 |
| Primary Product Color |
White |
| Sealable |
No |
| Series |
MATE-N-LOK |
| Termination Method to Wire & Cable |
Crimp |
| Total number of pins |
2 |
| UL Flammability Rating |
UL 94V-0 |
| UL Rating |
Recognized |
