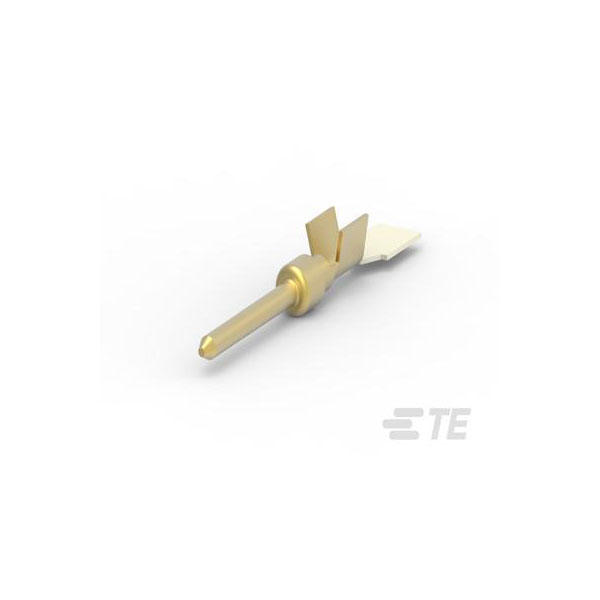

The TE Connectivity 745229-4 is a male pin contact designed for use in D-sub connectors, featuring an unshrouded crimp termination.
It is suitable for applications requiring reliable electrical connections, such as in data communication and signal transmission.
This component ensures low contact resistance and durability in various environments.
The robust construction makes it ideal for use in electronic equipment and industrial systems.
| Type |
Connector Contacts |
| Plug / Socket |
Plug |
| Mounting Type |
BackShell Mounting |
| Mounting Direction |
Straight Contact |
| Plating Material |
Gold Flash |
| Circuit Application |
Signal |
| Compatible Insulation Diameter Range |
.068 |
| Contact Base Material |
Brass |
| Contact Current Rating (Max) |
3.1 |
| Contact Gender |
Male |
| Contact Material |
Brass |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
30 |
| Contact Plating |
Gold |
| Contact Post Length |
0.391inch |
| Contact Style |
Crimp |
| Contact Type |
Pin |
| Depth |
2.29mm |
| ELV |
Compliant |
| Gender |
Male |
| Insulation Diameter |
0.068inch |
| Length |
14.22mm |
| Mount |
Cable |
| Number of Ports |
1 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Series |
AMPLIMITE HDP-20 |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Termination Post & Tail Length |
.391 |
| Wire Gauge (Max) |
18AWG |
| Wire Gauge (Min) |
22AWG |
| Wire Insulation Support |
Without |
| Wire Size |
22 – 18 |
| Wire/Cable Gauge |
18AWG |
