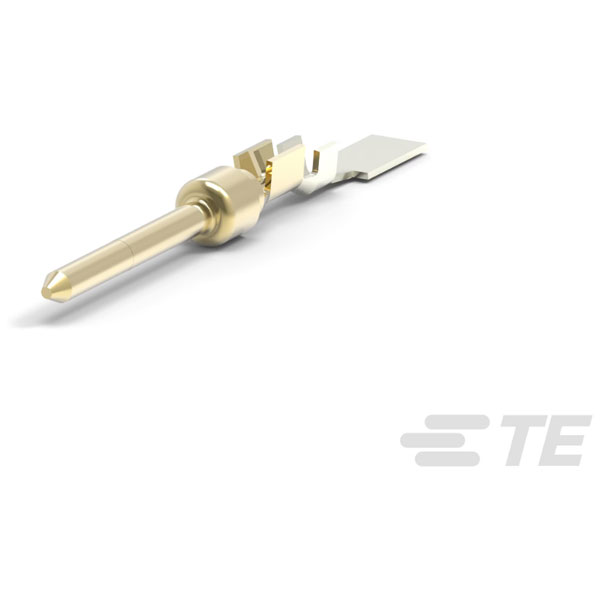

The TE Connectivity 66507-9 is a D-sub connector contact pin designed for male connections with an unshrouded style.
This component is suitable for wire sizes ranging from 28 to 24 AWG, providing versatility in different setups.
It is typically used in applications requiring secure and reliable data or power transmission, such as computing and industrial equipment.
The contact ensures a stable electrical connection in various electronic assemblies.
| Type |
Connector Contacts |
| Plug / Socket |
Plug |
| Mounting Type |
BackShell Mounting |
| Mounting Direction |
Straight Contact |
| Plating Material |
Tin |
| Circuit Application |
Signal |
| Compatible Insulation Diameter Range |
.03 – .04 |
| Contact Base Material |
Brass |
| Contact Current Rating (Max) |
1.2 |
| Contact Material |
Brass |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
30 |
| Contact Plating |
Gold |
| Contact Style |
Crimp |
| Contact Type |
Pin |
| Depth |
2.16mm |
| ELV |
Compliant |
| Gender |
Male |
| Insulation Diameter |
1.02mm |
| Length |
14.86mm |
| Max Current Rating |
7.5a |
| Maximum Operating Temperature |
105°C |
| Minimum Operating Temperature |
-55°C |
| Mount |
Cable |
| Number of Contacts |
1 |
| Number of Ports |
1 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Series |
AMPLIMITE HDP-20 |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Wire Gauge (Max) |
28AWG |
| Wire Gauge (Min) |
24AWG |
| Wire Insulation Support |
With |
| Wire Size |
28 – 24 |
| Wire/Cable Gauge |
24AWG |
