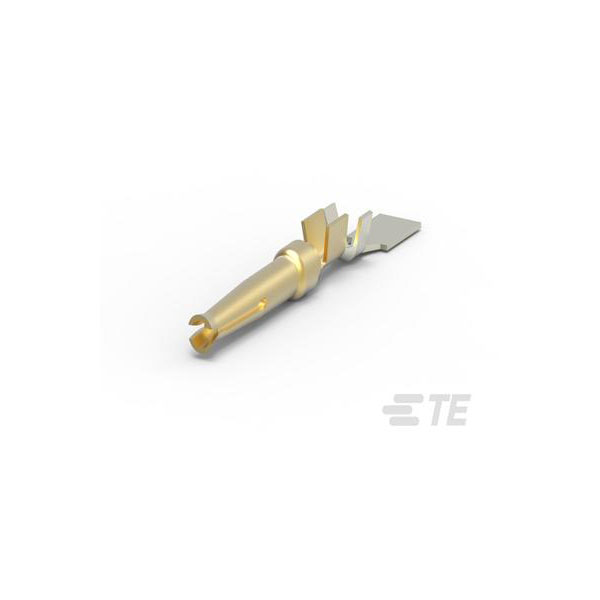

TE Connectivity's D-Sub Contacts Crimp Socket, part number 66504-4, is a female connector designed for wire sizes 24-20 AWG.
It comes in a reel of 10,000 pieces for efficient bulk usage.
These contacts offer reliable electrical connections, often used in computer and communication equipment.
Ideal for applications requiring high-density connections in rugged environments.
| Type |
Connector Contacts |
| Plug / Socket |
Socket |
| Mounting Type |
BackShell Mounting |
| Mounting Direction |
Straight Contact |
| Circuit Application |
Signal |
| Compatible Insulation Diameter Range |
.05 – .06 |
| Contact Base Material |
Phosphor Bronze |
| Contact Current Rating (Max) |
2 |
| Contact Gender |
Female |
| Contact Material |
Bronze |
| Contact Mating Area Plating Material |
Gold Flash |
| Contact Mating Area Plating Material Thickness |
30 |
| Contact Plating |
Gold |
| Contact Style |
Crimp |
| Contact Type |
Socket |
| Depth |
2.67mm |
| ELV |
Compliant |
| Gender |
Female |
| Insulation Diameter |
0.06inch |
| Lead Free |
Lead Free |
| Length |
14.1mm |
| Mount |
Cable |
| Number of Contacts |
1 |
| Number of Ports |
1 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
10000 |
| Packaging |
Tape and Reel |
| Packaging Method |
Reel |
| Packaging Quantity |
10000 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Series |
AMPLIMITE HDP-20 |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Wire Gauge (Max) |
20AWG |
| Wire Gauge (Min) |
24AWG |
| Wire Insulation Support |
With |
| Wire Size |
24 – 20 |
| Wire/Cable Gauge |
24AWG |
