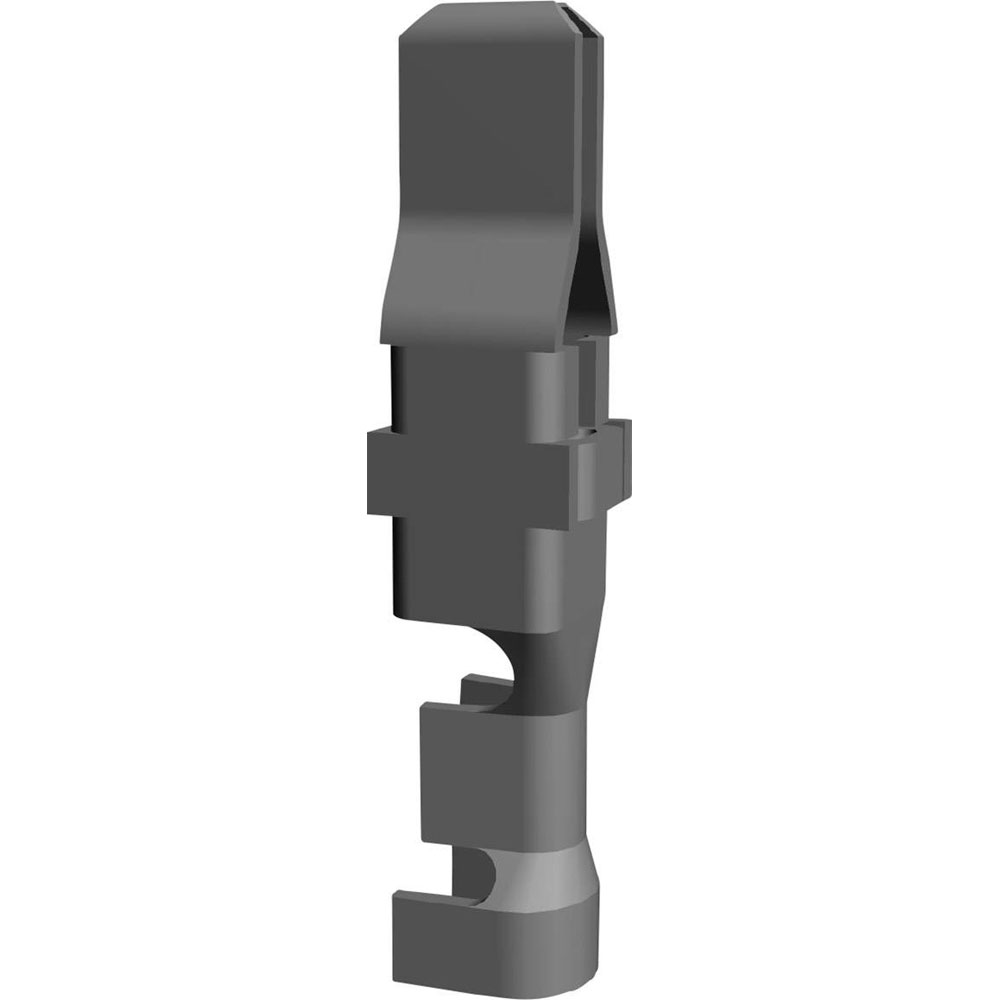

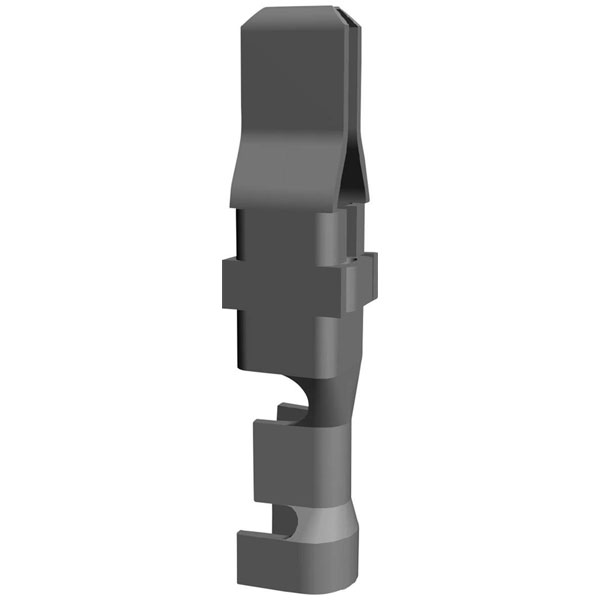

TE Connectivity manufactures the 66261-1 bullet connector, a single contact pin that is part of the CPC series of round connectors. It is typically used in electrical and electronic applications requiring reliable connectivity and efficient signal transmission. The connector is designed to facilitate secure connection in automotive, industrial, or communication equipment, supporting dependable power and data transfer.
| Type |
Bullet connector single contact |
| Wire Gauge |
12 - 16 |
| Circuit Application |
Power |
| Compatible Insulation Diameter Range |
.135 – .16 |
| Connection |
Crimp |
| Connection Angle |
180° |
| Connector Type |
Pin |
| Contact Base Material |
Copper |
| Contact Current Rating (Max) |
15 |
| Contact Gender |
Male |
| Contact Material |
Copper |
| Contact Mating Area Plating Material |
Tin-Lead |
| Contact Mating Area Plating Material Thickness |
50 |
| Contact Plating |
Tin, Lead |
| Contact Type |
Tab |
| Contact Underplating Material |
Copper |
| Current Rating |
15a |
| Depth |
5.58mm |
| ELV |
Non-Compliant |
| Gender |
Male |
| Height |
6.09mm |
| Insulation Diameter |
4.06mm |
| Lead Free |
Not Applicable |
| Length |
31.62mm |
| Mating Tab Thickness |
.105 |
| Mating Tab Width |
.23 |
| Max Current Rating |
35a |
| Max. temperature |
+85°C |
| Min. temperature |
-25°C |
| Misc Attribute |
CPC Baureihe 3 |
| Mount |
Cable |
| Nominal Current |
15A |
| Nominal Voltage |
100V AC |
| Operating Temperature Range |
-40 – 185 |
| Orientation |
Straight |
| Package Quantity |
100 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
100 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
No |
| Series |
CPC |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Wire Gauge (Max) |
16AWG |
| Wire Gauge (Min) |
12AWG |
| Wire Insulation Support |
With |
| Wire Size |
16 |
| Wire/Cable Gauge |
16AWG |
| Wire/Cable Type |
Discrete |
