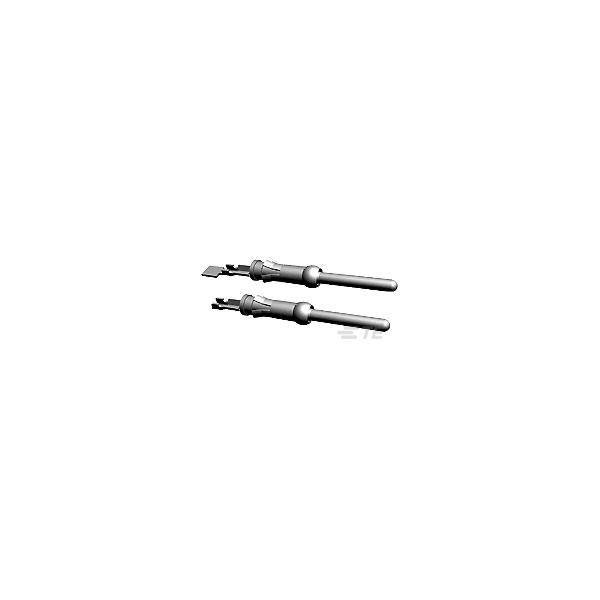

TE Connectivity 66099-2 is a standard circular contact designed for reliable electrical connections.
It features a tin-plated, male pin suitable for 18-16 AWG wire sizes.
The contact offers robust durability and efficient conductivity in harsh environments.
Typical applications include automotive and industrial equipment wiring.
| Type |
Connector Contacts |
| Pin or Socket |
Male |
| Wire Gauge |
18 - 16 |
| Barrel Type |
Open |
| Circuit Application |
Power & Signal |
| Compatible Insulation Diameter Range |
.08 – .1 |
| Contact Base Material |
Brass |
| Contact Current Rating (Max) |
13 |
| Contact Gender |
Male |
| Contact Material |
Brass |
| Contact Mating Area Length |
.39 |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Contact Mating Area Plating Material Finish |
Bright |
| Contact Mating Area Plating Material Thickness |
100 |
| Contact Plating |
Bright, Tin, Lead |
| Contact Retention Within Housing |
With |
| Contact Shape |
Round |
| Contact Shape & Form |
Round |
| Contact Type |
Pin |
| Contact Underplating Material |
Nickel |
| Contact Underplating Material Thickness |
50 |
| Current Rating |
13a |
| Depth |
3.68mm |
| Gender |
Male |
| Insulation Diameter |
0.1inch |
| Length |
7.25mm |
| Misc Attribute |
TE AMP Multimate Contacts |
| Mount |
Cable |
| Operating Temperature Range |
-67 – 194 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Packaging Type |
Carton |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
No |
| Sealable |
No |
| Series |
Multimate III+ |
| Strain Relief |
No (Without) |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Wire Gauge (Max) |
18AWG |
| Wire Gauge (Min) |
16AWG |
| Wire Insulation Support |
With |
| Wire Size |
18 – 16 |
| Wire/Cable Diameter |
2.54mm |
| Wire/Cable Gauge |
16AWG |
| Wire/Cable Type |
Discrete |
