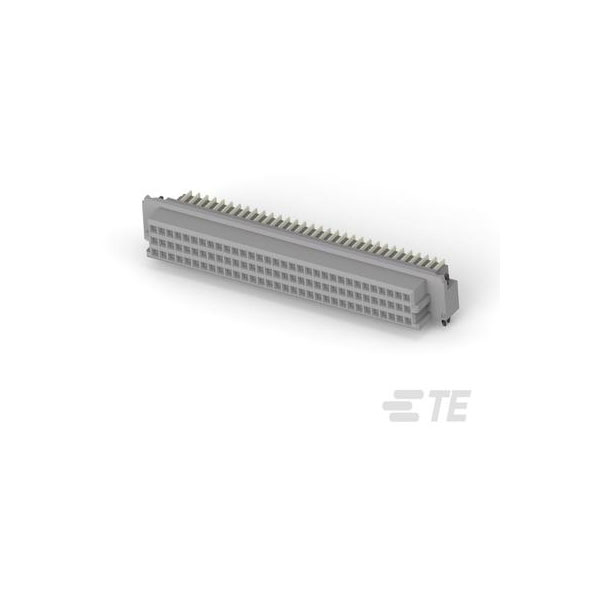

The TE Connectivity 650897-5 is an unshrouded DIN 41612 female connector with 64 positions.
It is designed for reliable board-to-board connections in electronic equipment.
Ideal for use in industrial control systems and telecommunications.
The connector ensures a secure connection and consistent performance in various applications.
| Type |
Eurocard Connectors |
| Number of Positions |
64 |
| Pitch |
.1 |
| Centerline (Pitch) |
2.54mm |
| Circuit Application |
Power & Signal |
| Colour |
Grey |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector & Housing Type |
Receptacle |
| Connector Mounting Type |
Board Mount |
| Connector System |
Board-to-Board |
| Contact Base Material |
Phosphor Bronze |
| Contact Current Rating (Max) |
1.5 |
| Contact Material |
Bronze |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
30 |
| Contact Plating |
Gold |
| Contact Type |
Socket |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Female |
| Housing Color |
Grey |
| Housing Material |
Polyester GF |
| Insulation Material |
Glass |
| Length |
93.87mm |
| Mating Alignment |
With |
| Mating Alignment Type |
Polarization |
| Maximum Operating Temperature |
105°C |
| Minimum Operating Temperature |
-55°C |
| Mount |
Through Hole |
| Number of Columns |
48 |
| Number of Contacts |
64 |
| Number of Positions Loaded |
64 |
| Number of Rows |
2 |
| Number of Signal Positions |
64 |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
250 |
| Orientation |
Right Angle |
| Package Quantity |
28 |
| Packaging |
Bulk |
| Packaging Method |
Box |
| PCB Contact Termination Area Plating Material |
Tin-Lead |
| PCB Contact Termination Area Plating Material Thickness |
100 – 200 |
| PCB Mount Alignment |
Without |
| PCB Mount Orientation |
Right Angle |
| PCB Mount Retention |
With |
| PCB Mount Retention Type |
Boardlock |
| PCB Thickness (Recommended) |
.062 |
| Primary Product colour |
Grey |
| Radiation Hardening |
No |
| Series |
Eurocard |
| Shielded |
No |
| Termination |
Solder |
| Termination Method to PCB |
Through Hole - Solder |
| Termination Post & Tail Length |
.11 |
| UL Flammability Rating |
UL 94V-0 |
