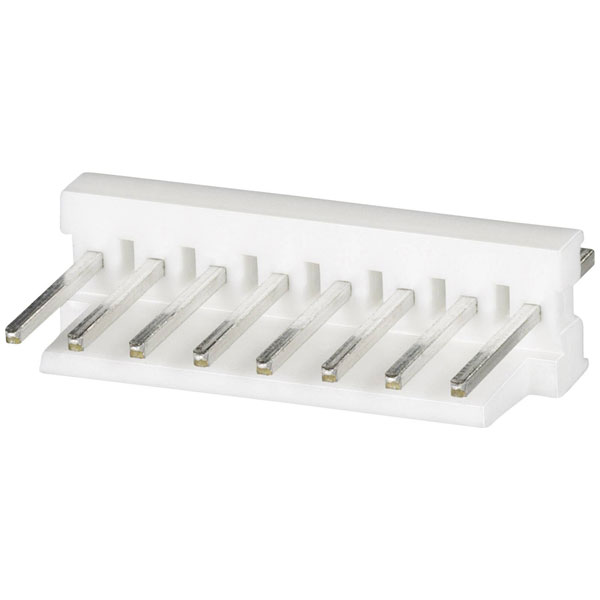

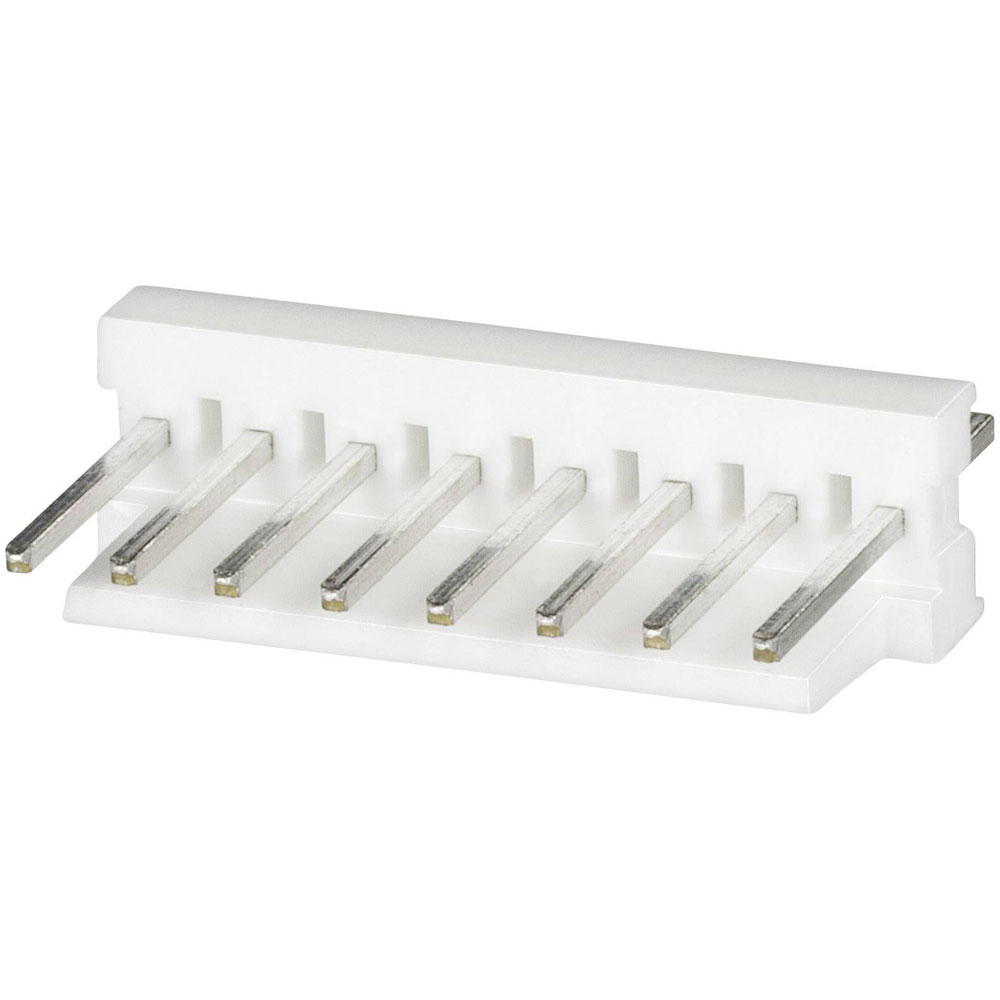

TE Connectivity 640454-8 MTA-100 Pin Strip 8 Pins 1 pc

TE Connectivity
Order Code:

07-4754

Brand: TE Connectivity MPN: 640454-8 EAN-13: 2050002874404
Qty Unit Price (Ex VAT)
20+ £0.301
200+ £0.247
750+ £0.246
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
61 in stock, despatched in 4 working days

TE Connectivity's Pin Strip (standard) MTA-100 features 8 pins, making it suitable for a range of electronic applications. This reliable component is often used for signal and power connections in various devices. It is popular in the automotive and telecommunications industries for its durability and ease of use.
Type Pin strip (standard)
Number of Positions 8
Number of Rows 1
Board contact surface Tin plated
Case Material Polyester
Centerline (Pitch) 2.54mm
Circuit Application Signal
Colour Ecru
Compatible With Agency/Standards Products CSA
Compatible With Approved Standards Products UL E28476
Connection Print
Connector & Contact Terminates To Printed Circuit Board
Connector contact surface Tin plated
Connector Height .305
Connector Length .9
Connector Mounting Type Board Mount
Connector Product Type Connector Assembly
Connector System wire-to-wire
Connector Type Plug, straight
Contact Base Material Copper Alloy
Contact Current Rating (Max) 5
Contact Layout Inline
Contact Material Copper alloy
Contact Mating Area Length .295
Contact Mating Area Plating Material Tin (Sn)
Contact Mating Area Plating Material Finish Matte
Contact Mating Area Plating Material Thickness 150
Contact Shape & Form Square
Contact Type Pin
Contact Underplating Material Nickel
Contact Underplating Material Thickness 50
Dimensions (L x W x H) 5.08 x 20.32 x 13.59 mm
Header Type Partially Shrouded
Height 13.59mm
Housing Material Polyester GF
Industrial packaging No
Insulation Material Polyester
Length 5.08mm
Mating Alignment With
Mating Alignment Type Polarization
Mating Retention Without
Mating Square Post Dimension .025
Max. temperature +105°C
Min. temperature -55°C
Misc Attribute MTA-100
Nominal Current 5A
Nominal Voltage 250V AC
Operating Temperature Range -67 – 221
Operating Voltage 250
Packaging Method Package
Packaging Quantity 1
Panel Mount Feature Without
PCB Connector Type PCB Mount Header
PCB Contact Termination Area Plating Material Tin
PCB Contact Termination Area Plating Material Thickness 150
PCB Mount Alignment Without
PCB Mount Orientation Vertical
PCB Mount Retention Without
PCB Thickness (Recommended) .063
Pin shape Rectangular
Pins per row 8
Primary Product Color Natural
Sealable No
Series MTA-100
Square Termination Post & Tail Dimension .025
Termination Method to PCB Through Hole - Solder
Termination Post & Tail Length .14
UL Flammability Rating UL 94V-0
Width 20.32mm
