TE Connectivity 640383-9 MTA-156 Pin Strip 9 Pins 1 Piece

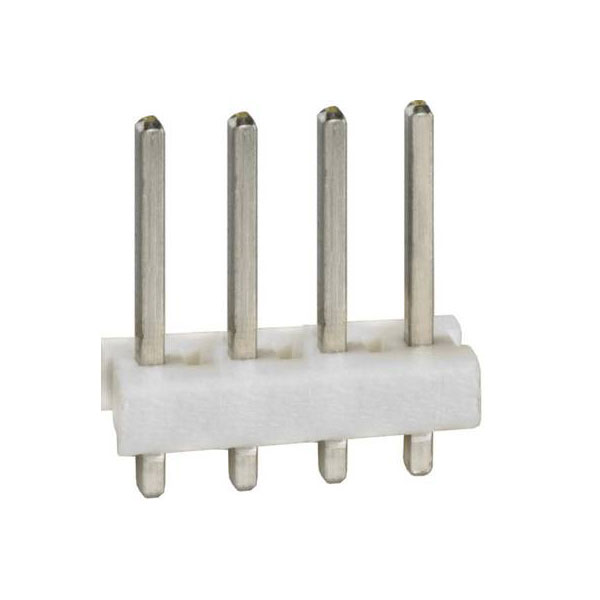

Image Representative of Range

TE Connectivity 640383-9 MTA-156 Pin Strip 9 Pins 1 Piece

TE Connectivity
Order Code:

07-4740

Brand: TE Connectivity MPN: 640383-9 EAN-13: 2050002849204
Qty Unit Price (Ex VAT)
5+ £1.19
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
466 in stock, despatched in 4 working days

TE Connectivity's MTA-156 pin strip features nine pins for secure and reliable electrical connections. This standard pin strip is ideal for use in various electronic and industrial applications where stable connections are necessary. Its robust design ensures durability and consistent performance in demanding environments.
Type Pin strip (standard)
Number of Positions 9
Number of Rows 1
Board contact surface Tin plated
Case Material Polyester
Centerline (Pitch) 3.9624mm
Circuit Application Power
Colour Ecru
Compatible With Agency/Standards Products CSA
Compatible With Approved Standards Products UL E28476
Connection Print
Connector & Contact Terminates To Printed Circuit Board
Connector Contact Load Condition Fully Loaded
Connector contact surface Tin plated
Connector Height .525
Connector Length 1.404
Connector Mounting Type Board Mount
Connector Product Type Connector Assembly
Connector System wire-to-wire
Connector Type Plug, straight
Connector Width .25
Contact Base Material Copper Alloy
Contact Current Rating (Max) 14.24
Contact Layout Inline
Contact Material Copper alloy
Contact Mating Area Length .4
Contact Mating Area Plating Material Tin (Sn)
Contact Mating Area Plating Material Thickness 100
Contact Shape & Form Square
Contact Type Tab
Contact Underplating Material Nickel
Contact Underplating Material Thickness 50
Dimensions (L x W x H) 6.35 x 35.66 x 16.51 mm
Glow Wire Rating Standard Part - Not Glow Wire
Header Type Unshrouded
Height 16.51mm
Housing Material Thermoplastic Polyester GF
Industrial packaging No
Insulation Material Polyester
Length 6.35mm
Mating Alignment Without
Mating Retention Without
Mating Square Post Dimension .045
Max. temperature +105°C
Min. temperature -55°C
Misc Attribute MTA-156
Nominal Current 7A
Nominal Voltage 600V AC
Number of Columns 9
Number of Power Positions 9
Operating Temperature (Max) 221
Operating Temperature Range -67 – 221
Operating Voltage 600
Packaging Method Package
Packaging Quantity 1000
Panel Mount Feature Without
PCB Connector Type PCB Mount Header
PCB Contact Termination Area Plating Material Tin
PCB Contact Termination Area Plating Material Thickness 100
PCB Mount Alignment Without
PCB Mount Orientation Vertical
PCB Mount Retention Without
PCB Thickness (Recommended) .062
Pin shape Rectangular
Pins per row 9
Primary Product Color Natural
Sealable No
Series MTA-156
Square Termination Post & Tail Dimension .045
Termination Method to PCB Through Hole - Solder
Termination Post & Tail Length .125
UL Flammability Rating UL 94V-0
UL Rating Recognized
Width 35.66mm
