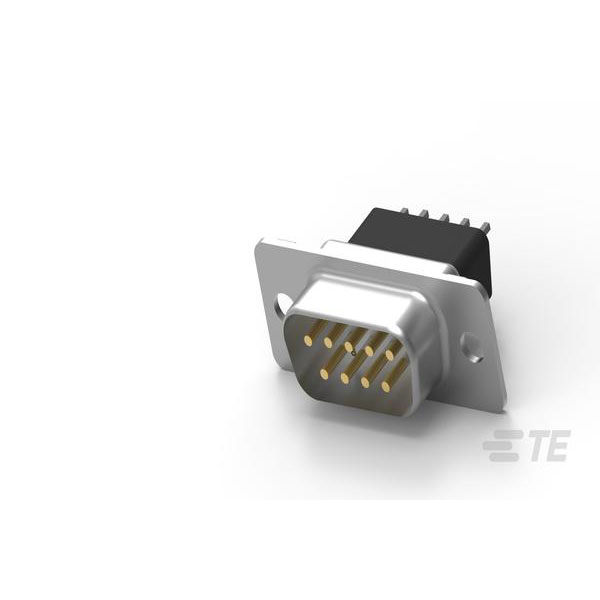

TE Connectivity 5745410-1 is a male unshrouded DB9 plug.
It features standard density with solder cup terminations.
This connector is typically used in data communication and interface applications.
It is known for its reliable performance in serial connections.
| Plug / Socket |
Plug |
| Mounting Direction |
Straight |
| Approvals |
UL, CSA |
| Body Material |
Metal, Steel |
| Circuit Application |
Signal |
| Color |
Black |
| Contact Material |
Brass |
| Contact Plating |
Gold, Tin |
| Contact Post Length |
0.125inch |
| Contact Shape |
Square |
| Contact Type |
Signal |
| Depth |
12.54mm |
| Dielectric Material |
Nylon |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Housing Color |
Black |
| Lead Free |
Lead Free |
| Lead Length |
3.175mm |
| Length |
30.81mm |
| Material |
Metal |
| Mating Connector Lock |
No (Without) |
| Max Operating Temperature |
105°C |
| Max Supply Voltage (AC) |
250v |
| Max Supply Voltage (DC) |
250v |
| Max Voltage Rating (AC) |
250v |
| Max Voltage Rating (DC) |
250.25kV |
| Min Operating Temperature |
-55°C |
| Mount |
Through Hole |
| Number of Contacts |
9 |
| Number of Ports |
1 |
| Number of Positions |
9 |
| Number of Rows |
2 |
| Orientation |
Straight |
| Package Quantity |
17 |
| Package/Case |
Metal |
| Packaging |
Rail/Tube |
| PCB Mount Retention |
Without |
| PCB Mounting Orientation |
Vertical |
| PCB Thickness |
2.36mm |
| Pitch |
0.109inch |
| Plating |
Tin |
| Preloaded |
Yes |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Row Spacing |
2.8448mm |
| Sealable |
No (Without) |
| Series |
AMPLIMITE HDP-20 |
| Shell Material |
Steel |
| Shell Size |
1 |
| Shielding |
Unshielded |
| Termination |
Solder |
| Voltage Rating |
125v |
| Voltage Rating (AC) |
250v |
| Width |
0.689inch |
