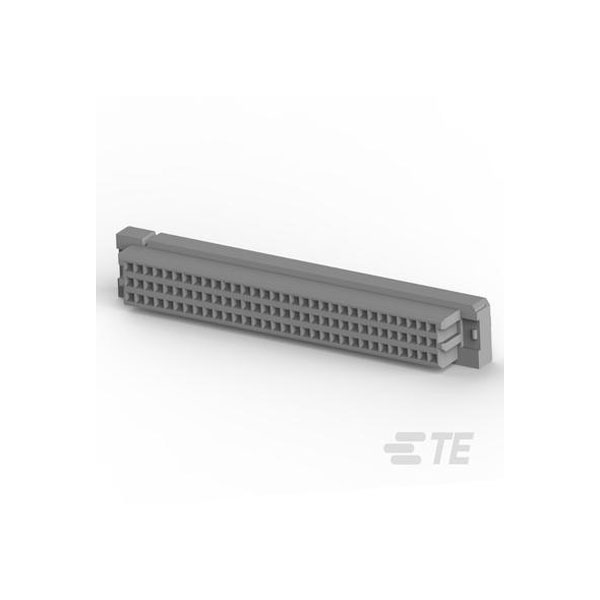

The TE Connectivity 5650963-5 is a DIN 41612 connector featuring a female configuration with 96 pins arranged in a right-angle Type C layout.
This connector is designed for reliable electrical connections and is suitable for high-density circuit boards.
Its primary applications are in telecommunications and computer systems, where secure data transmission and robust connections are essential.
Built for durability, this component supports efficient performance in industrial and commercial environments.
| Type |
Eurocard Connectors |
| Number of Positions |
96 |
| Mounting Angle |
Right Angle |
| Pitch |
.1 |
| Centerline (Pitch) |
2.54mm |
| Circuit Application |
Signal |
| Colour |
Grey |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector & Housing Type |
Receptacle |
| Connector Height |
.453 |
| Connector Mounting Type |
Board Mount |
| Connector System |
Board-to-Board |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating (Max) |
1.5 |
| Contact Material |
Copper Alloy |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
.003 |
| Contact Plating |
Gold, Tin |
| Contact Post Length |
0.13inch |
| Contact Type |
Socket |
| Current Rating |
1.5a |
| Depth |
10.6mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Receptacle |
| Height |
11.5 |
| Housing Color |
Grey |
| Housing Material |
Polyester GF |
| Insulation Material |
Polymer |
| Length |
93.98mm |
| Make First / Break Last |
Yes |
| Mating Alignment |
With |
| Mating Alignment Type |
Polarization |
| Mating Retention |
Without |
| Max Voltage Rating (AC) |
250v |
| Maximum Operating Temperature |
125°C |
| Minimum Operating Temperature |
-55°C |
| Mount |
Through Hole |
| Number of Columns |
32 |
| Number of Contacts |
96 |
| Number of Rows |
3 |
| Number of Signal Positions |
96 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
30 |
| Packaging |
Box |
| Packaging Method |
Box |
| PCB Contact Termination Area Plating Material |
Tin |
| PCB Contact Termination Area Plating Material Thickness |
3.93 – 7.87 |
| PCB Mount Orientation |
Vertical |
| PCB Mount Retention |
With |
| PCB Mount Retention Type |
Boardlock |
| PCB Mounting Orientation |
Vertical |
| PCB Thickness |
0.062inch |
| PCB Thickness (Recommended) |
.062 |
| Plating Thickness |
0.003um |
| Primary Product colour |
Grey |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Series |
Eurocard |
| Tail Length |
3.3mm |
| Termination |
Solder |
| Termination Method to PCB |
Through Hole - Solder |
| Termination Post & Tail Length |
.13 |
