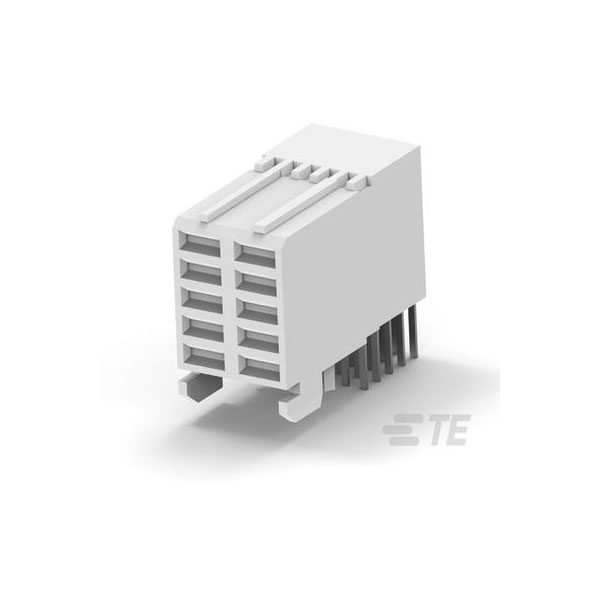

The TE Connectivity 5536649-1 is a high-speed modular female shrouded connector.
It features a 2x005 pin configuration, ideal for reliable data transmission.
The connector is commonly used in networking and telecommunications applications.
It ensures secure connections in compact electronic installations.
| Type |
PCB Headers & Receptacles |
| Number of Positions |
10 |
| Mounting Angle |
Horizontal |
| Pitch |
.079 |
| Centerline (Pitch) |
2.0066mm |
| Circuit Application |
Power |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Height |
.523 |
| Connector Length |
.88 |
| Connector Mounting Type |
Board Mount |
| Connector Product Type |
Connector Assembly |
| Connector System |
Board-to-Board |
| Connector Width |
.468 |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating |
3a |
| Contact Current Rating (Max) |
3 |
| Contact Layout |
Matrix |
| Contact Material |
Bronze |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
31.5 – 51.18 |
| Contact Plating |
Gold, Tin |
| Contact Retention |
Yes (With) |
| Contact Style |
Socket |
| Contact Type |
Receptacle |
| Contact Underplating Material |
Nickel |
| Contact Underplating Material Thickness |
50 – 100 |
| Current Rating |
3a |
| Depth |
22.45mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Female |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Header Type |
Partially Shrouded |
| Height |
0.52269inch |
| Housing Color |
Natural |
| Housing Material |
LCP |
| Lead Free |
Not Applicable |
| Length |
11.88mm |
| Mating Alignment |
With |
| Mating Alignment Type |
Polarizing Rib |
| Max Voltage Rating (AC) |
30v |
| Maximum Operating Temperature |
125°C |
| Minimum Operating Temperature |
-55°C |
| Mount |
Through Hole, Edge, Board |
| Number of Contacts |
10 |
| Number of Power Positions |
10 |
| Number of Rows |
5 |
| Operating Supply Voltage |
30v |
| Operating Temperature (Max) |
257 |
| Operating Temperature Range |
-67 – 257 |
| Operating Voltage |
30 |
| Orientation |
Right Angle |
| Package Quantity |
48 |
| Packaging |
Rail/Tube |
| Packaging Method |
Tube |
| Packaging Quantity |
48 |
| PCB Connector Type |
PCB Mount Receptacle |
| PCB Contact Termination Area Plating Material |
Tin |
| PCB Contact Termination Area Plating Material Thickness |
50 – 150 |
| PCB Mount Alignment |
With |
| PCB Mount Orientation |
Right Angle |
| PCB Mount Retention |
With |
| PCB Mount Retention Type |
Solder Peg |
| PCB Mounting Orientation |
Right Angle |
| Plating |
Gold |
| Plating Thickness |
0.76um |
| Primary Product colour |
Natural |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
Z-Pack |
| Termination |
Solder |
| Termination Method to PCB |
Through Hole - Press-Fit |
| Termination Post & Tail Length |
.14 |
| UL Flammability Rating |
UL 94V-0 |
| Voltage Rating |
30v |
| Voltage Rating (AC) |
30v |
