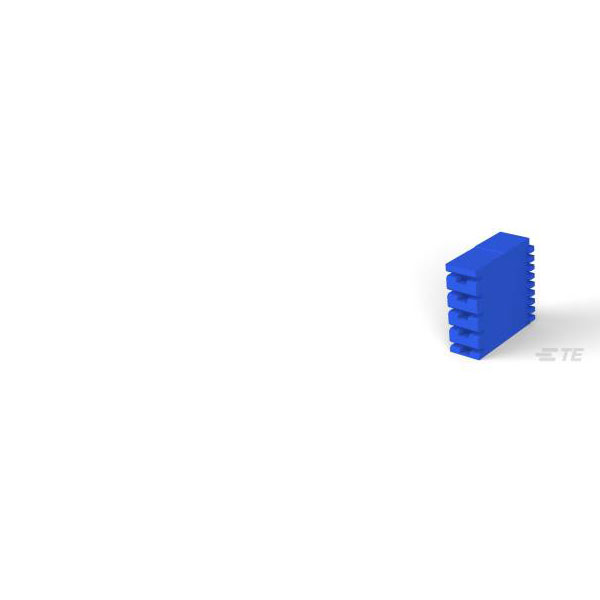

TE Connectivity 521207-1 RAST 5 Connector POSI-LOK HSG 5 POSITIONS

TE Connectivity
Order Code:

07-4639

Brand: TE Connectivity MPN: 521207-1 EAN-13: 2050006963807
Qty Unit Price (Ex VAT)
5+ £0.823
10+ £0.763
100+ £0.703
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
40 in stock, despatched in 4 working days

The TE Connectivity 521207-1 is a RAST 5 connector known for its robust design and reliable performance. It is typically used in household appliances and industrial equipment for secure electrical connections. The connector ensures stable and safe power transmissions in demanding environments.
Type Rectangular Wire & Cable Connectors & Housings
Pitch 5.0038mm
Number of Ways 5
Number of Rows 1
Mounting Type Cable Mount (Free-Hanging)
Circuit Application Power & Signal
Color Blue
Connector & Contact Terminates To Wire & Cable
Connector & Housing Type Receptacle
Connector Height .48
Connector Length .362
Connector Product Type Housing
Connector System Wire-to-Wire
Contact Base Material Brass
Contact Layout Inline
Contact Material Brass
Contact Type Socket
ELV Compliant
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Rating Standard Part - Not Glow Wire
Height 12.2mm
Housing Color Blue
Housing Material Nylon 6/66
Lead Free Not Applicable
Length 0.362inch
Material Nylon
Mating Alignment Yes (With)
Mating Connector Lock Yes (With)
Mating Retention With
Mating Retention Type Latch
Misc Attribute TE AMP RAST 5 Connectors
Mount Free Hanging
Number of Positions 5
Operating Temperature Range -40 – 230
Orientation Straight
Package Quantity 1
Packaging Method Package
Packaging Quantity 1
Packaging Type Package
Panel Mount Feature Without
PCB Mount Retention Without
Primary Product colour Blue
RoHS Compliant Yes
Row Spacing 0.197inch
Row-to-Row Spacing .197
Sealable No
Series Mark III, AMP
Strain Relief No (Without)
Termination Crimp
Termination Method to Wire & Cable Crimp
UL Flammability Rating UL 94V-0
