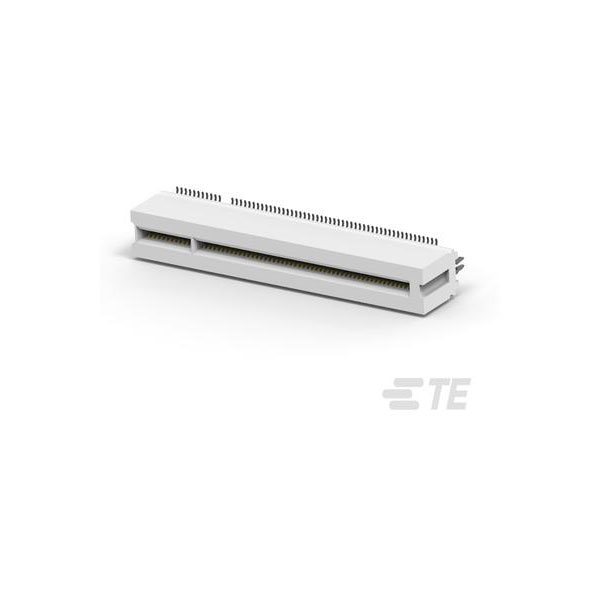

TE Connectivity 5145098-1 Card Edge Connector Dual Side 120P Unshrouded

MPN: 5145098-1
Brand: TE Connectivity
Order Code: 14-4784
Country of Origin: China

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
30+	£7.60

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 30

Despatched within 5 working days - 1,854 in stock

Product Details

TE Connectivity 5145098-1 is a dual-side card edge connector with 120 positions.

It features an unshrouded design, suitable for applications requiring robust card connectivity.

The connector is typically used in data communication or industrial control systems.

Its reliable performance ensures effective transmission in high-density electronic setups.

Type	PCI & PCI Express Connectors
Number of Positions	120
Mounting Angle	Edge
Centerline (Pitch)	1.27mm
Circuit Application	Signal
Connector & Contact Terminates To	Printed Circuit Board
Connector Height	.61
Connector Length	.135
Connector Mounting Type	Board Mount
Connector System	Board-to-Board
Connector Width	.014
Contact Base Material	Phosphor Bronze
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	30
Contact Underplating Material	Nickel
Housing Material	High Temperature Thermoplastic
Manufacturer Series	5145098
Operating Temperature Range	-67 – 185
Operating Voltage	203
Packaging Method	Box & Carton
Packaging Quantity	32
PCB Contact Termination Area Plating Material	Tin
PCB Contact Termination Area Plating Material Thickness	2.54
PCB Mount Orientation	Vertical
PCB Mount Retention Type	Hold-Down Post
Primary Product colour	Natural
Product Weight	14.353
Termination Method to PCB	Surface Mount
