TE Connectivity 5-166054-1 D-Sub Contacts Pin Crimp Male Reel 500

MPN: 5-166054-1
Brand: TE Connectivity
Order Code: 15-8968
Country of Origin: Poland

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
500+	£0.607

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 500

Despatched within 5 working days - 9,500 in stock

Product Details
Quick Quote

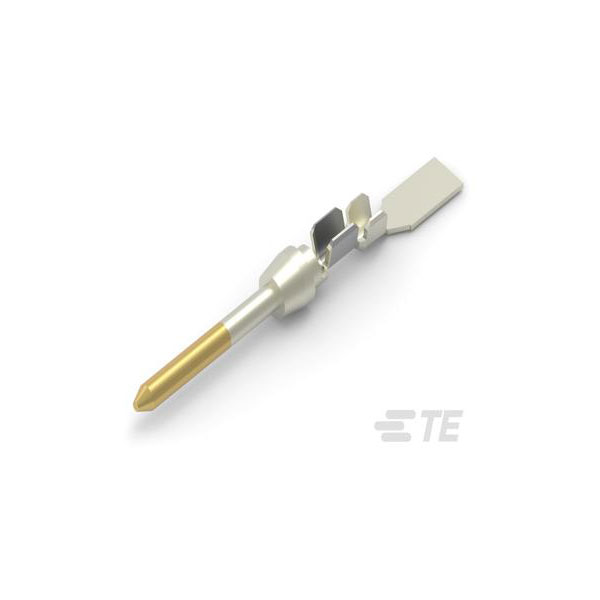

TE Connectivity 5-166054-1 is a crimp pin designed for D-sub contacts.

It is male, suitable for wire termination, and comes in a reel of 500 units.

This product ensures reliable electrical connection and ease of assembly.

It is typically used in networking and data communication applications.

Type	Connector Contacts
Plug / Socket	Plug
Mounting Type	BackShell Mounting
Mounting Direction	Straight Contact
Plating Material	Tin
Circuit Application	Signal
Compatible Insulation Diameter Range	.03 – .04
Contact Base Material	Brass
Contact Current Rating (Max)	1.2
Contact Gender	Male
Contact Material	Brass
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	.76
Contact Plating	Gold, Tin
Contact Style	Crimp
Contact Type	Pin
Depth	2.2mm
ELV	Compliant
Gender	Male
Height	2.2mm
Insulation Diameter	1.02mm
Lead Free	Not Applicable
Length	14.9mm
Mount	Cable
Operating Temperature Range	-67 – 221
Orientation	Straight
Package Quantity	500
Packaging	Tape and Reel
Packaging Method	Small Reel
Packaging Quantity	500
Plating Thickness	0.76um
Product Terminates To	Wire & Cable
Radiation Hardening	No
RoHS Compliant	No
Series	AMPLIMITE® HDP-20
Shielding	Unshielded
Termination	Crimp
Termination Method to Wire & Cable	Crimp
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	24AWG
Wire Insulation Support	With
Wire Size	28 – 24
Wire/Cable Gauge	24AWG
