TE Connectivity 5-166053-1 D-Sub Contacts Pin Contact Crimp Male Reel 500

MPN: 5-166053-1
Brand: TE Connectivity
Order Code: 14-2425
Country of Origin: Poland

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
500+	£0.732

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 500

Available to back orderBack order, lead time 4 months

Product Details
Quick Quote

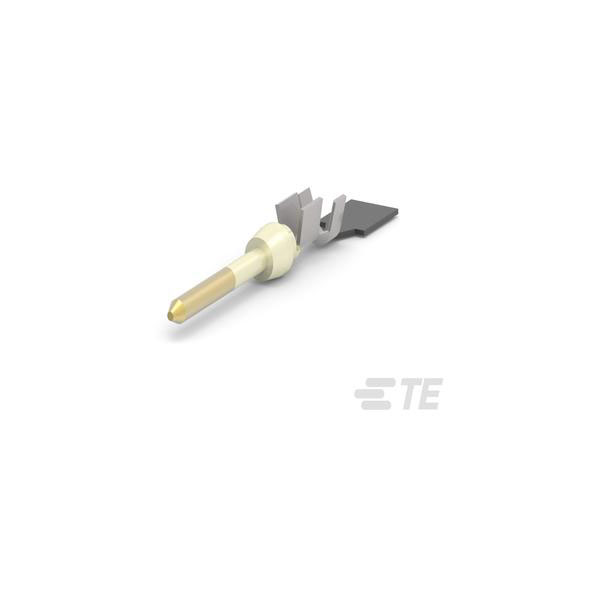

TE Connectivity's 5-166053-1 is a D-sub pin contact designed for crimp termination.

This male contact is delivered on a reel of 500, making it suitable for high-volume assembly.

It features reliable metallic construction for secure connections in electronic systems.

Typical applications include telecommunications, computer equipment, and data transmissions.

Type	Connector Contacts
Plug / Socket	Plug
Mounting Type	BackShell Mounting
Mounting Direction	Straight Contact
Plating Material	Tin
Circuit Application	Signal
Compatible Insulation Diameter Range	.05 – .06
Contact Base Material	Brass
Contact Current Rating (Max)	2
Contact Gender	Male
Contact Material	Brass
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	.76
Contact Plating	Gold, Tin
Contact Style	Crimp
Contact Type	Pin
Depth	2.2mm
Gender	Male
Insulation Diameter	0.06inch
Length	14.9mm
Mount	Cable
Operating Temperature Range	-67 – 221
Orientation	Straight
Package Quantity	500
Packaging	Tape and Reel
Packaging Method	Small Reel
Packaging Quantity	500
Plating Thickness	0.76um
Product Terminates To	Wire & Cable
Radiation Hardening	No
RoHS Compliant	Yes
Series	AMPLIMITE® HDP-20
Shielding	Unshielded
Termination	Crimp
Termination Method to Wire & Cable	Crimp
Wire Gauge (Max)	24AWG
Wire Gauge (Min)	20AWG
Wire Insulation Support	With
Wire Size	24 – 20
Wire/Cable Gauge	24AWG
