TE Connectivity 5-166051-1 D-Sub Contacts Socket Female Crimp 24-20 AWG

MPN: 5-166051-1
Brand: TE Connectivity
Order Code: 14-2415
Country of Origin: Poland

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
500+	£0.774

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 500

Available to back orderBack order, lead time 4 months

Product Details

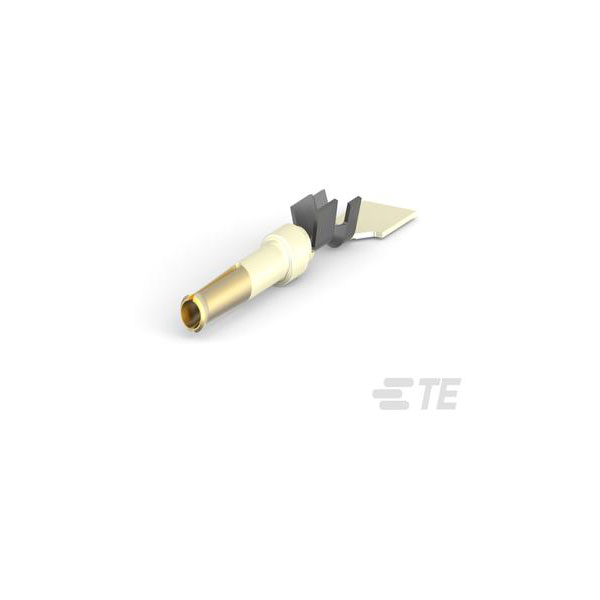

TE Connectivity 5-166051-1 is a D-Sub contact socket designed for female crimp connections.

It is compatible with 24-20 AWG wire sizes and ensures reliable electrical connection.

These contacts are typically used in data communications and industrial equipment.

Known for durability, they are ideal for creating secure, long-lasting connections.

Type	Connector Contacts
Plug / Socket	Socket
Mounting Type	BackShell Mounting
Mounting Direction	Straight Contact
Plating Material	Tin
Circuit Application	Signal
Compatible Insulation Diameter Range	.05 – .06
Contact Base Material	Phosphor Bronze
Contact Current Rating (Max)	2
Contact Gender	Female
Contact Material	Bronze
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	.76
Contact Plating	Gold, Tin
Contact Style	Crimp
Contact Type	Socket
Depth	2.2mm
ELV	Compliant
Gender	Female
Height	2.2mm
Insulation Diameter	0.06inch
Lead Free	Not Applicable
Length	14.4mm
Mount	Cable
Operating Temperature Range	-67 – 221
Orientation	Straight
Package Quantity	500
Packaging	Tape and Reel
Packaging Method	Small Reel
Packaging Quantity	500
Plating Thickness	0.76um
Product Terminates To	Wire & Cable
Radiation Hardening	No
RoHS Compliant	Yes
Series	AMPLIMITE® HDP-20
Termination	Crimp
Termination Method to Wire & Cable	Crimp
Wire Gauge (Max)	24AWG
Wire Gauge (Min)	20AWG
Wire Insulation Support	With
Wire Size	24 – 20
Wire/Cable Gauge	20AWG
