TE Connectivity 4-1734839-0 FPC Connector Female Unshrouded 0.5mm Pitch

Inc VAT

Qty	Unit Price (Ex VAT)
2000+	£0.570

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 2000

Available to back orderBack-order availability date - 08/06/2026

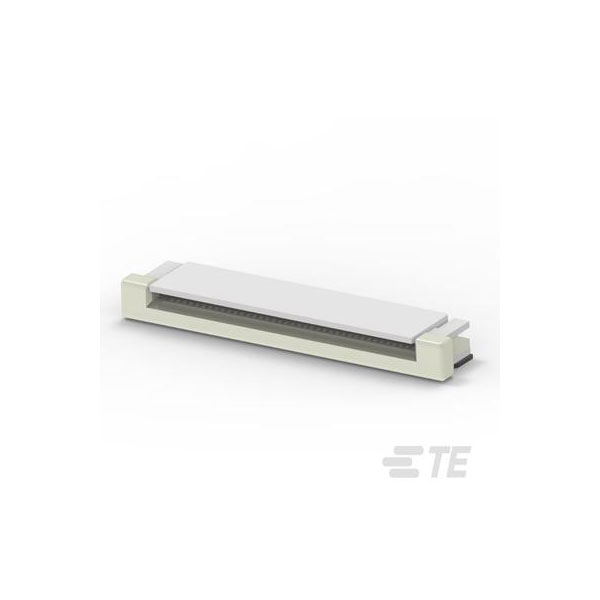

TE Connectivity 4-1734839-0 is a female unshrouded FPC connector with a 0.5mm pitch.

It features a surface mount design suitable for high-density electronic applications.

The connector supports fine-pitch flex circuit connections, ensuring reliable performance.

Typical applications include mobile devices, consumer electronics, and compact computing equipment.

Actuator Colour	Beige
Actuator Material	Thermoplastic
Circuit Application	Signal
Connector System	Flex-to-Board
Contact Current Rating	500mA
Contact Location	Top
Contact Material	Bronze
Contact Plating	Gold
Depth	5.1mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	2.05mm
Housing Colour	Natural
Length	25.43mm
Mating Alignment	Yes (With)
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Mount	Surface Mount
Number of Contacts	40
Number of Positions	40
Number of Rows	1
Operating Supply Voltage	250v
Orientation	Right Angle
Package Quantity	2000
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
Pitch	0.5mm
Plating	Gold
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	250v
Width	5.1mm
Wire/Cable Type	Flat Flex
