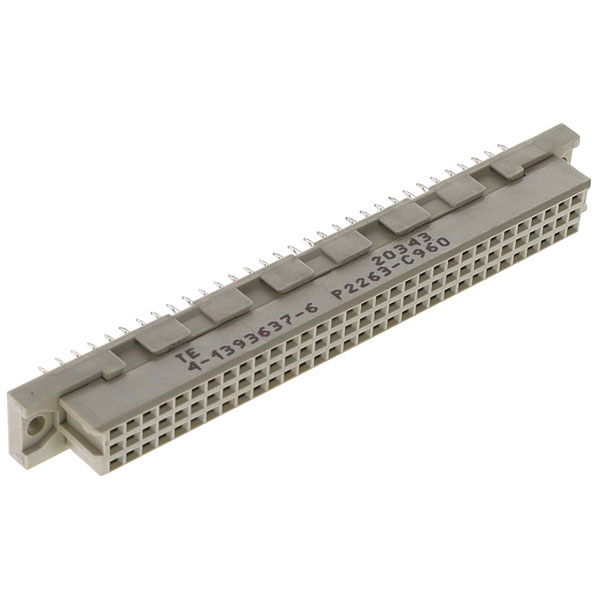

TE Connectivity 4-1393637-6 DIN 41612 Connector 96P 3 Row Female Shrouded

MPN: 4-1393637-6
Brand: TE Connectivity
Order Code: 14-2334
Country of Origin: Poland

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
40+	£3.82

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 40

Despatched within 5 working days - 950 in stock

Product Details

The TE Connectivity 4-1393637-6 is a DIN 41612 connector featuring 96 pins in three rows.

It is a shrouded, female connector offering secure and reliable connections.

The connector is typically used in telecommunications and data equipment.

Its robust design ensures durability and optimal performance in challenging environments.

Type	DIN 41612 Connector
Number of Positions	96
Mounting Angle	Straight
Pitch	2.54
Connector System	Board-to-Board
Contact Material	Bronze
Contact Plating	Gold
Contact Post Length	0.146inch
Current Rating	1.5a
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	10.6
Housing Colour	Grey
Insulation Material	PBT
Length	95mm
Make First / Break Last	No
Mating Alignment	Yes (With)
Max Voltage Rating (AC)	250v
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Mount	Through Hole
Number of Contacts	96
Number of Rows	3
Orientation	Straight
Package Quantity	100
Packaging	Bulk
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	2.2mm
RoHS Compliant	Yes
Series	Eurocard
Shielding	Unshielded
Tail Length	3.7mm
Termination	Press-Fit
Voltage Rating	250v
