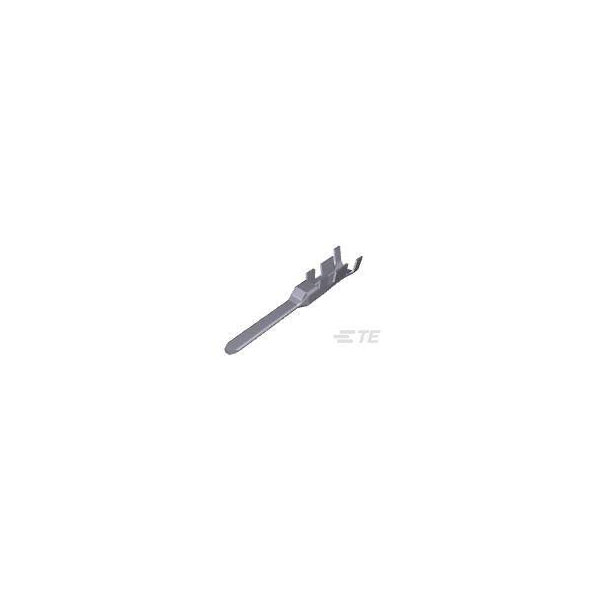

TE Connectivity 353718-5 Dynamic D-3 Tab Contact 3 Lengths Pre-Tin 1 pc

TE Connectivity manufactures the 353718-5, a component from the TE AMP Dynamic Series. It features reliable electrical connectivity and is typically used in industrial and automotive applications. This part is sold in a single piece bag.

Type	Connector Contacts
Pin or Socket	Male
Circuit Application	Power & Signal
Connector System	Wire-to-Wire
Contact Current Rating	15a
Contact Current Rating (Max)	15
Contact Material	Copper Alloy
Contact Mating Area Plating Material	Tin (Sn)
Contact Plating	Bright, Tin
Contact Retention	Yes (With)
Contact Type	Tab
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Insulation Diameter	3.8mm
Length	25.8mm
Mating Tab Thickness	.025
Mating Tab Width	.08
Maximum Operating Temperature	221°C
Minimum Operating Temperature	-67°C
Misc Attribute	TE AMP Dynamic Series
Mount	Cable
Operating Temperature Range	-67 – 221
Orientation	Straight
Package Quantity	1000
Packaging	Bag
Packaging Method	Bag & Box
Packaging Type	Bag
Product Terminates To	Wire & Cable
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	Dynamic D-3
Shielding	Unshielded
Termination	Crimp
Wire Gauge (Max)	14AWG
Wire Gauge (Min)	16AWG
Wire Size	16 – 14
Wire/Cable Gauge	14AWG
Wire/Cable Type	Discrete
